Contact Protection – GPN 360 Type B

The GPN 360 Type B contact protection protects compact connector sockets in the low-voltage range, e.g. MLK, SLK and MAK, and is also suitable for oval openings. The handy grip tab guarantees fast removal and the circumferential ribs enable an optimal clamping fit. Within certain limits, the contact protection prevents the ingress of liquids.

Contact protection for internal protection
Production in accordance with ISO 16232 in a specially designed cleanroom possible
Two sustainable variants made from post-consumer recyclate available

more advantages

100% Post-Consumer Recyclate

Recycling blend

Virgin material

Dimensions

Colour

yellow

Material

PCR-PE / PE-LD

Technical data sheet

show

View prices and conditions directly online here and order even more easily.

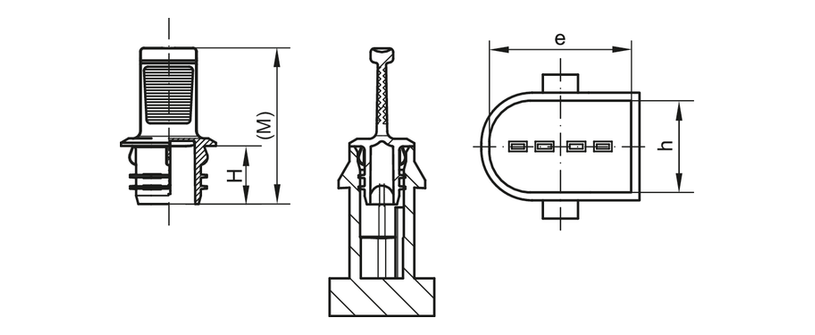

			Dimensions
Item	e	h	H	M	CAD	Order no.
GPN 360 KS 1812 PCR-PE / PE-LD, yellow	17,48	11,48	7,7	20,7	show	36018120073

GPN 360 KS 2312 PCR-PE / PE-LD, yellow	22,48	11,48	7,7	20,7	show	36023120073

GPN 360 KS 2812 PCR-PE / PE-LD, yellow	27,48	11,48	7,7	20,7	show	36028120073

GPN 360 KS 3816 PCR-PE / PE-LD, yellow	37,3	15,2	7,7	20,7	show	36038160073

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

Application guide


Item	Contact connections
GPN 360 KS 1812 PCR-PE / PE-LD, yellow	SLK 2.8 VDA	2
GPN 360 KS 2312 PCR-PE / PE-LD, yellow	SLK 2.8 VDA	3
GPN 360 KS 3816 PCR-PE / PE-LD, yellow	SLK 2.8 VDA	4
GPN 360 KS 2812 PCR-PE / PE-LD, yellow	SLK 2.8 VDA	4

The contact protector GPN 360 was developed for special compact plug connections, which are listed in the application table. The contact protector is additionally suitable for other connections.
