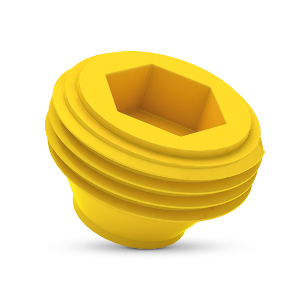

Screw Plugs - GPN 720 Type B

The GPN 720 Type B screw plugs are suitable for many different internal threads. The sealing cone prevents the ingress or leaking of liquids within certain limits.


  • Screw Plugs for internal protection
  • Also available in Type A in a thick-walled design
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

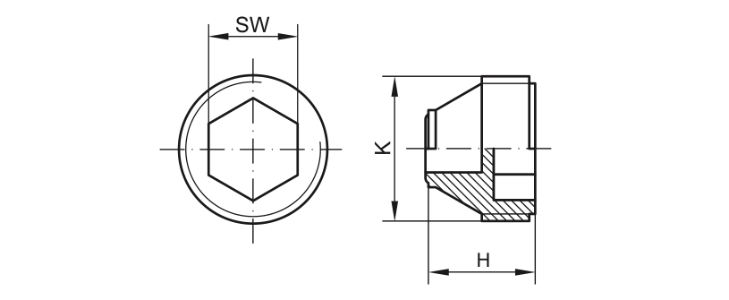

Drawing screw plug - GPN 720 Form B
Colour
yellow
Material
PCR-PE / PE-LD
View prices and conditions directly online here and order even more easily.
Applicable for
Dimensions
Item
K
H
SW
CAD
Order no.
GPN 720 / 0232 PCR-PE / PE-LD, yellow M 16 x 1.5 14 8 72002320073
GPN 720 / 1668 PCR-PE / PE-LD, yellow M 20 x 1.5 17,4 13 72016680073
GPN 720 / 1763 PCR-PE / PE-LD, yellow M 18 x 1.5 13,3 10 72017630073
GPN 720 / 9463 PCR-PE / PE-LD, yellow M 10 x 1 11,2 5 72094630073

Dimensions in mm.

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Quality advantages

<p><strong>Seals better.</strong></p>

Seals better.

Depending on the application, the sealing cone will prevent penetration or leaking of liquids.
<p><strong>Better.</strong></p>

Better.

Immersible screw plug with hexagonal socket.
<p><strong>More resource-saving.</strong></p>

More resource-saving.

Mix of post-consumer recyclate and virgin material
