Paint protection cap - GPN 733

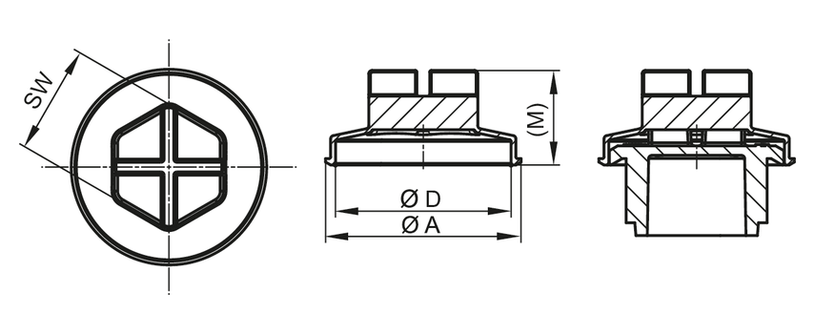

gpn 733 paint protection cap, sketch,
Paint protection caps - GPN 733
The GPN 733 paint caps are suitable as paint protection for the GPN 735 and GPN 737 sealing plugs. The paint caps keep a defined area around the screw plug free of paint, maintain the appearance of the sealing plugs and reduce the risk of contamination of the opening to be protected.
- First utility-model-protected protective cap made by the 3D printing process
- Painting caps for sealing plugs GPN 735 and GPN 737
- Can be mounted with KAPSTO BIT-73X
Virgin material
Dimensions
Colour
black
Material
MJF PA12
|
|
Applicable for
|
Dimensions
|
|
Dimensions
|
|
||||
|---|---|---|---|---|---|---|---|---|---|
|
Item
|
/LocalizationKeys/productDetailsPage/kapsto/kapsto.column.10781
|
A
|
B
|
D
|
M
|
SW
|
CAD
|
Order no.
|
|
| GPN 733 1 1/16 - 12 UN MJF PA12, black | 1 1/16 - 12 UN | 36,7 | 2,1 | 33,6 | 14,8 | 15 | show | 73335460000 | |
|
|
|||||||||
| GPN 733 G 1 MJF PA12, black | G 1 | 43,3 | 2,5 | 40,2 | 14,8 | 15 | show | 73310000000 | |
|
|
|||||||||
| GPN 733 G 1/2 MJF PA12, black | G 1/2 | 30,5 | 2,1 | 27,4 | 14,8 | 15 | show | 73312000000 | |
|
|
|||||||||
| GPN 733 G 1/4 MJF PA12, black | G 1/4 | 22,5 | 1,6 | 19,4 | 12,3 | 12 | show | 73314000000 | |
|
|
|||||||||
| GPN 733 G 3/4 MJF PA12, black | G 3/4 | 35,6 | 2,1 | 32,5 | 14,8 | 15 | show | 73334000000 | |
|
|
|||||||||
| GPN 733 G 3/8 MJF PA12, black | G 3/8 | 25,5 | 2,1 | 22,4 | 14,8 | 15 | show | 73338000000 | |
|
|
|||||||||
| GPN 733 M 12 x 1,5 MJF PA12, black | M 12 x 1,5 | 20,5 | 1,6 | 17,4 | 11,8 | 12 | show | 73312150000 | |
|
|
|||||||||
| GPN 733 M 14 x 1,5 MJF PA12, black | M 14 x 1,5 | 22,5 | 1,6 | 19,4 | 12,8 | 12 | show | 73314150000 | |
|
|
|||||||||
| GPN 733 M 16 x 1,5 MJF PA12, black | M 16 x 1,5 | 25,3 | 2,1 | 22,2 | 14,8 | 15 | show | 73316150000 | |
|
|
|||||||||
| GPN 733 M 18 x 1,5 MJF PA12, black | M 18 x 1,5 | 27,3 | 2,1 | 24,2 | 14,8 | 15 | show | 73318150000 | |
|
|
|||||||||
| GPN 733 M 20 x 1,5 MJF PA12, black | M 20 x 1,5 | 29,3 | 2,1 | 26,2 | 14,8 | 15 | show | 73320150000 | |
|
|
|||||||||
| GPN 733 M 22 x 1,5 MJF PA12, black | M 22 x 1,5 | 30,5 | 2,1 | 27,4 | 14,8 | 15 | show | 73322150000 | |
|
|
|||||||||
Dimensions in mm.
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Better fit.
Optimum fit and clamping for GPN 735 and GPN 737 sealing plugs during the coating process.
