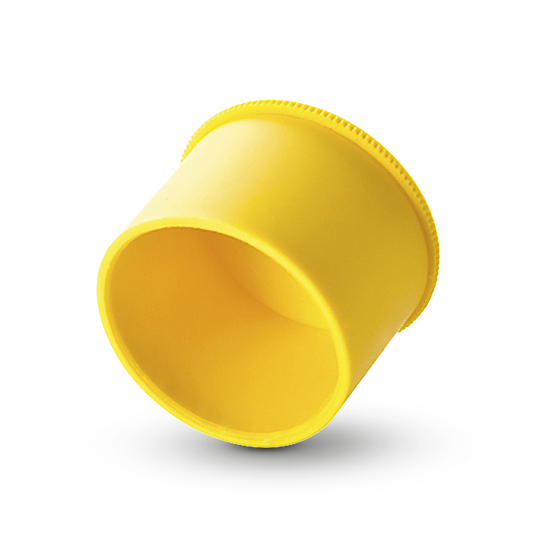

Flexible pockets - GPN 201

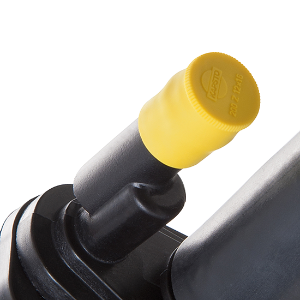

Application Protective sleeve - GPN 201

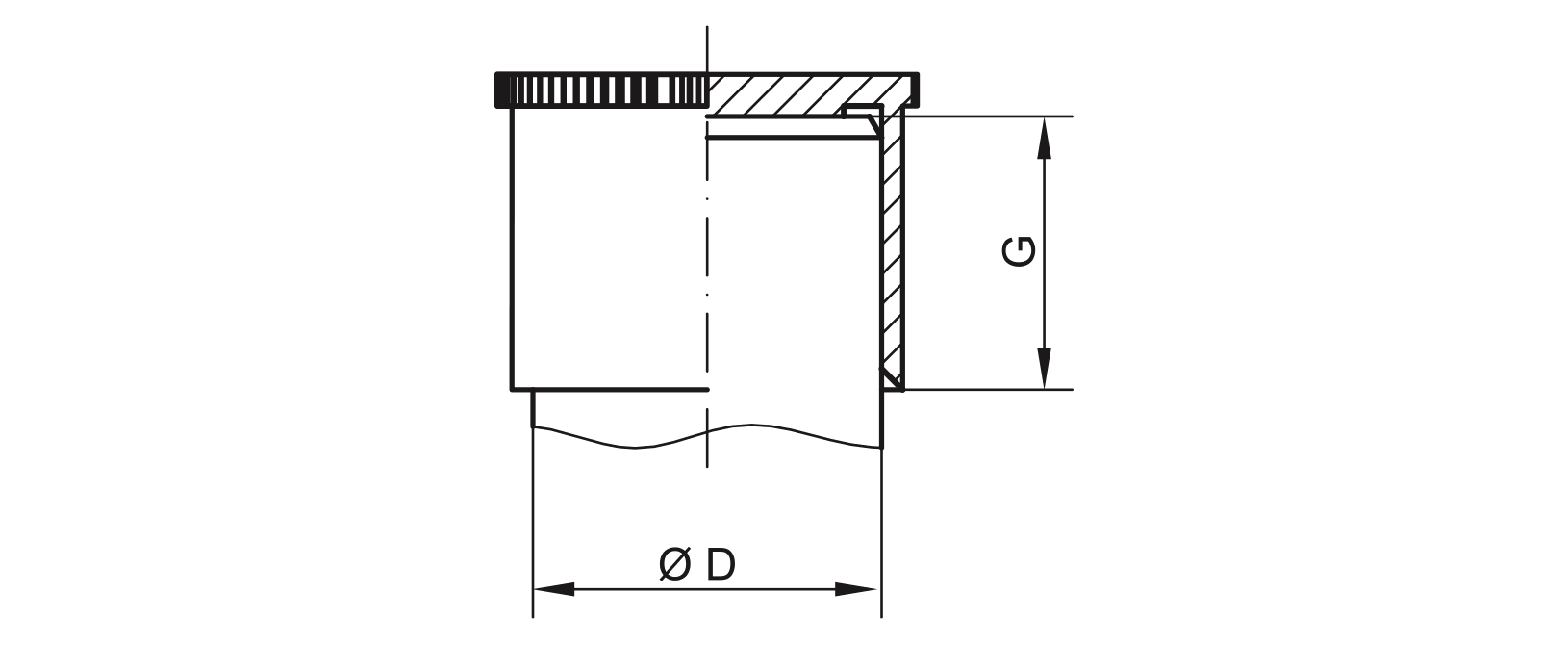

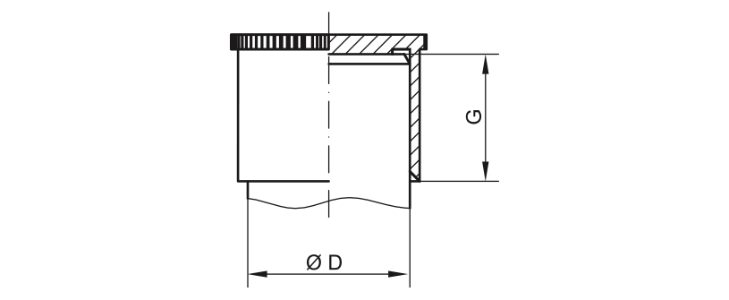

Drawing flexible protective sleeve - GPN 201

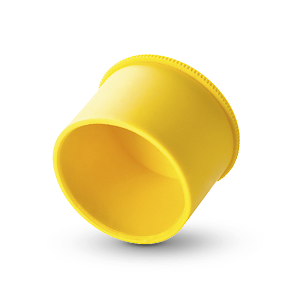

Flexible Protective Caps - GPN 201
The flexible GPN 201 protective caps protect pipe ends and shafts as well as threaded studs and are temporarily heat-resistant up to 150°C.
Can be used for different diameters thanks to the particularly flexible material and the easy-to-grip, knurled collar ensures easy removal.- Flexible protective caps for external protection
- Temporarily heat-resistant up to 150°C
Virgin material
Dimensions
Colour
yellow
Material
TPE
pds.kapsto.shop.prices.and.conditions
|
|
||||||
|---|---|---|---|---|---|---|
|
Item
|
D min
|
D max
|
G
|
CAD
|
Order no.
|
|
| GPN 201 G 1 TPE, yellow | 33,1 | 34,7 | 19,5 | show | 20105900000 | |
|
|
||||||
| GPN 201 G 1/2 TPE, yellow | 20,8 | 21,5 | 15 | show | 20105670000 | |
|
|
||||||
| GPN 201 G 1/4 TPE, yellow | 13,2 | 13,9 | 15 | show | 20105890000 | |
|
|
||||||
| GPN 201 G 3/4 TPE, yellow | 26,2 | 27,7 | 16,5 | show | 20105680000 | |
|
|
||||||
| GPN 201 G 3/8 TPE, yellow | 16,5 | 17,1 | 13 | show | 20105660000 | |
|
|
||||||
| GPN 201 Z 5 x 13 TPE, yellow | 4,9 | 5,4 | 13 | show | 20105130000 | |
|
|
||||||
| GPN 201 Z 5 x 20 TPE, yellow | 4,9 | 5,4 | 20 | show | 20105200000 | |
|
|
||||||
| GPN 201 Z 6 x 10 TPE, yellow | 5,9 | 6,4 | 10 | show | 20106100000 | |
|
|
||||||
| GPN 201 Z 6 x 16 TPE, yellow | 5,9 | 6,4 | 16 | show | 20106160000 | |
|
|
||||||
| GPN 201 Z 7 x 16 TPE, yellow | 6,9 | 7,3 | 15,5 | show | 20107160000 | |
|
|
||||||
| GPN 201 Z 8 x 10 TPE, yellow | 8 | 8,4 | 10 | show | 20108100000 | |
|
|
||||||
| GPN 201 Z 8 x 16 TPE, yellow | 7,9 | 8,4 | 16 | show | 20108160000 | |
|
|
||||||
| GPN 201 Z 8 x 30 TPE, yellow | 7,9 | 8,1 | 30 | show | 20108300000 | |
|
|
||||||
| GPN 201 Z 9 x 12 TPE, yellow | 9,2 | 9,4 | 11,5 | show | 20109120000 | |
|
|
||||||
| GPN 201 Z 9 x 16 TPE, yellow | 9 | 9,1 | 16 | show | 20109160000 | |
|
|
||||||
| GPN 201 Z 10 x 6 TPE, yellow | 10 | 10,7 | 6 | show | 20110600000 | |
|
|
||||||
| GPN 201 Z 10 x 10 TPE, yellow | 9,9 | 10,5 | 10 | show | 20110100000 | |
|
|
||||||
| GPN 201 Z 10 x 22 TPE, yellow | 10 | 10,3 | 22 | show | 20110220000 | |
|
|
||||||
| GPN 201 Z 10 x 28 TPE, yellow | 9,9 | 10,2 | 28 | show | 20110280000 | |
|
|
||||||
| GPN 201 Z 10 x 33 TPE, yellow | 9,9 | 10,1 | 33 | show | 20110330000 | |
|
|
||||||
| GPN 201 Z 12 x 10 TPE, yellow | 11,9 | 12,8 | 10 | show | 20112100000 | |
|
|
||||||
| GPN 201 Z 12 x 16 TPE, yellow | 11,8 | 12,5 | 16 | show | 20112160000 | |
|
|
||||||
| GPN 201 Z 12 x 35 TPE, yellow | 11,9 | 12,1 | 35 | show | 20112350000 | |
|
|
||||||
| GPN 201 Z 12,5 x 20 TPE, yellow | 12,5 | 13,3 | 20 | show | 20112520000 | |
|
|
||||||
| GPN 201 Z 14 x 8 TPE, yellow | 13,9 | 14,8 | 8 | show | 20114800000 | |
|
|
||||||
| GPN 201 Z 14 x 10 TPE, yellow | 13,9 | 14,7 | 10 | show | 20114100000 | |
|
|
||||||
| GPN 201 Z 14 x 15 TPE, yellow | 13,9 | 14,6 | 15 | show | 20114150000 | |
|
|
||||||
| GPN 201 Z 14 x 20 TPE, yellow | 13,9 | 14,4 | 20 | show | 20114200000 | |
|
|
||||||
| GPN 201 Z 14 x 38 TPE, yellow | 13,9 | 14,4 | 38 | show | 20114380000 | |
|
|
||||||
| GPN 201 Z 14,5 x 15 TPE, yellow | 14,4 | 14,9 | 15 | show | 20114510000 | |
|
|
||||||
| GPN 201 Z 16 x 8 TPE, yellow | 15,9 | 16,7 | 8 | show | 20116800000 | |
|
|
||||||
| GPN 201 Z 16 x 15 TPE, yellow | 16 | 16,6 | 15 | show | 20116150000 | |
|
|
||||||
| GPN 201 Z 16 x 20 TPE, yellow | 15,9 | 16,6 | 20 | show | 20116200000 | |
|
|
||||||
| GPN 201 Z 16 x 25 TPE, yellow | 15,9 | 16,3 | 25 | show | 20116250000 | |
|
|
||||||
| GPN 201 Z 18 x 15 TPE, yellow | 17,9 | 18,9 | 15 | show | 20118150000 | |
|
|
||||||
| GPN 201 Z 18 x 20 TPE, yellow | 17,9 | 18,4 | 20 | show | 20118200000 | |
|
|
||||||
| GPN 201 Z 18 x 26 TPE, yellow | 17,9 | 18,3 | 26 | show | 20118260000 | |
|
|
||||||
| GPN 201 Z 20 x 14 TPE, yellow | 20 | 20,7 | 14 | show | 20120140000 | |
|
|
||||||
| GPN 201 Z 20 x 20 TPE, yellow | 20 | 20,7 | 20 | show | 20120200000 | |
|
|
||||||
| GPN 201 Z 22 x 18 TPE, yellow | 21,9 | 22,5 | 18 | show | 20122180000 | |
|
|
||||||
| GPN 201 Z 22 x 30 TPE, yellow | 21,9 | 22,5 | 30 | show | 20122300000 | |
|
|
||||||
| GPN 201 Z 24 x 18 TPE, yellow | 23,9 | 24,6 | 18 | show | 20124180000 | |
|
|
||||||
| GPN 201 Z 27 x 20 TPE, yellow | 26,7 | 27,8 | 20 | show | 20127200000 | |
|
|
||||||
| GPN 201 Z 28 x 20 TPE, yellow | 27,7 | 28,6 | 20 | show | 20128200000 | |
|
|
||||||
| GPN 201 Z 30 x 22 TPE, yellow | 29,8 | 30,7 | 22 | show | 20130220000 | |
|
|
||||||
| GPN 201 Z 32 x 22 TPE, yellow | 31,3 | 32,8 | 22 | show | 20132220000 | |
|
|
||||||
| GPN 201 Z 33 x 25 TPE, yellow | 32,7 | 33,9 | 25 | show | 20133250000 | |
|
|
||||||
| GPN 201 Z 35 x 25 TPE, yellow | 35 | 35,8 | 25 | show | 20135250000 | |
|
|
||||||
| GPN 201 Z 36 x 25 TPE, yellow | 35,8 | 37,5 | 25 | show | 20136250000 | |
|
|
||||||
| GPN 201 Z 38 x 25 TPE, yellow | 38,1 | 39,2 | 25 | show | 20138250000 | |
|
|
||||||
| GPN 201 Z 39 x 27 TPE, yellow | 38,6 | 39,7 | 27 | show | 20139270000 | |
|
|
||||||
| GPN 201 Z 40 x 27 TPE, yellow | 39,8 | 41 | 27 | show | 20140270000 | |
|
|
||||||
| GPN 201 Z 42 x 27 TPE, yellow | 41,9 | 42,9 | 27 | show | 20142270000 | |
|
|
||||||
| GPN 201 Z 45 x 30 TPE, yellow | 45,1 | 46 | 30 | show | 20145300000 | |
|
|
||||||
| GPN 201 Z 48 x 30 TPE, yellow | 48,3 | 49,9 | 30 | show | 20148300000 | |
|
|
||||||
| GPN 201 Z 50 x 30 TPE, yellow | 50 | 51 | 30 | show | 20150300000 | |
|
|
||||||
Dimensions in mm.
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
This application table represents guideline values. We would be pleased to send you free samples.
Dimension G is not subject to DIN ISO 3302-1.
Engraving corresponds to standard series GPN 200.
* Substances of very high concern according to EU-REACH-VO
Quality advantages
Temperaturbeständiger.
Heat resistant to 150 °C.
Vielseitiger.
Suitable for different diameters due to flexible material. Free from plasticizers with SVHC* relevance.
Besser.
Cylindrical caps with easy-to-grip knurled collar for protection of threaded studs, pipe ends and shafts.
