Application Flexible grip caps - GPN 211
Drawing Flexible grip caps - GPN 211

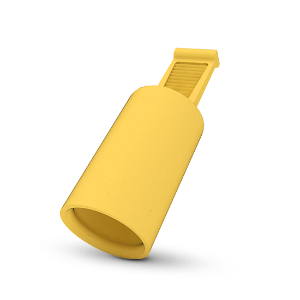

Product image Flexible grip caps - GPN 211, TPE
Flexible Grip Caps - GPN 211
The GPN 211 flexible grip caps are suitable for protecting pipe ends, hoses and bolts. The internal sealing rim enables an optimal clamping fit and high sealing function. The ergonomically shaped grip tab enables easy handling during fitting and removal.
The flexible material enables use for different diameters and is temporarily heat-resistant up to 120°C.
- sustainable variant as PCR and virgin mixture
- Flexible grip caps for external protection
- Temporarily heat-resistant up to 120°C
Recycling blend
Virgin material
Dimensions
Colour
yellow
Material
PCR-TPE, gelb
Technical data sheet
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|
|
Item
|
D min
|
D max
|
G
|
M
|
CAD
|
Order no.
|
|
| GPN 211 ZL 4 x 21 PCR-TPE, yellow | 4 | 5 | 21 | 34 | show | 21104210085 | |
|
|
|||||||
| GPN 211 ZL 5 x 20 PCR-TPE, yellow | 5 | 6 | 20 | 36 | show | 21105200085 | |
|
|
|||||||
| GPN 211 ZL 6 x 10 PCR-TPE, yellow | 6 | 7,5 | 10 | 26 | show | 21106100085 | |
|
|
|||||||
| GPN 211 ZL 6 x 20 PCR-TPE, yellow | 6 | 7,5 | 20 | 36 | show | 21106200085 | |
|
|
|||||||
| GPN 211 ZL 7 x 20 PCR-TPE, yellow | 7 | 8 | 20 | 37 | show | 21107200085 | |
|
|
|||||||
| GPN 211 ZL 8 x 10 PCR-TPE, yellow | 7,9 | 9 | 10 | 26 | show | 21108100085 | |
|
|
|||||||
| GPN 211 ZL 8 x 20 PCR-TPE, yellow | 7,9 | 9 | 20 | 36 | show | 21108200085 | |
|
|
|||||||
| GPN 211 ZL 9 x 20 PCR-TPE, yellow | 9 | 10,5 | 20 | 36 | show | 21109200085 | |
|
|
|||||||
| GPN 211 ZL 10 x 10 PCR-TPE, yellow | 9,9 | 11,5 | 10 | 26 | show | 21110100085 | |
|
|
|||||||
| GPN 211 ZL 10 x 20 PCR-TPE, yellow | 9,9 | 11,5 | 20 | 36 | show | 21110200085 | |
|
|
|||||||
| GPN 211 ZL 11 x 20 PCR-TPE, yellow | 10,8 | 12,5 | 20 | 36 | show | 21111200085 | |
|
|
|||||||
| GPN 211 ZL 12 x 10 PCR-TPE, yellow | 11,9 | 13 | 10 | 26 | show | 21112100085 | |
|
|
|||||||
| GPN 211 ZL 12 x 20 PCR-TPE, yellow | 11,9 | 13 | 20 | 36 | show | 21112200085 | |
|
|
|||||||
| GPN 211 ZL 12 x 30 PCR-TPE, yellow | 11,9 | 13 | 30 | 46,5 | show | 21112300085 | |
|
|
|||||||
| GPN 211 ZL 13 x 20 PCR-TPE, yellow | 12,9 | 15 | 20 | 36 | show | 21113200085 | |
|
|
|||||||
| GPN 211 ZL 14 x 10 PCR-TPE, yellow | 13,9 | 16 | 10 | 26 | show | 21114100085 | |
|
|
|||||||
| GPN 211 ZL 14 x 20 PCR-TPE, yellow | 13,9 | 16 | 20 | 36 | show | 21114200085 | |
|
|
|||||||
| GPN 211 ZL 15 x 20 PCR-TPE, yellow | 14,9 | 17 | 20 | 36 | show | 21115200085 | |
|
|
|||||||
| GPN 211 ZL 16 x 10 PCR-TPE, yellow | 15,9 | 18 | 10 | 26 | show | 21116100085 | |
|
|
|||||||
| GPN 211 ZL 16 x 20 PCR-TPE, yellow | 15,9 | 18 | 20 | 36 | show | 21116200085 | |
|
|
|||||||
| GPN 211 ZL 17 x 20 PCR-TPE, yellow | 16,9 | 19 | 20 | 36 | show | 21117200085 | |
|
|
|||||||
| GPN 211 ZL 18 x 10 PCR-TPE, yellow | 17,9 | 20 | 10 | 26 | show | 21118100085 | |
|
|
|||||||
| GPN 211 ZL 18 x 20 PCR-TPE, yellow | 17,9 | 20 | 20 | 36 | show | 21118200085 | |
|
|
|||||||
| New GPN 211 ZL 18 x 30 PCR-TPE, yellow | 17,9 | 20 | 30 | 46,5 | show | 21118300085 | |
|
|
|||||||
| GPN 211 ZL 19 x 20 PCR-TPE, yellow | 18,9 | 21 | 20 | 36 | show | 21119200085 | |
|
|
|||||||
| GPN 211 ZL 20 x 10 PCR-TPE, yellow | 20 | 22 | 10 | 26 | show | 21120100085 | |
|
|
|||||||
| GPN 211 ZL 20 x 20 PCR-TPE, yellow | 20 | 22 | 20 | 36 | show | 21120200085 | |
|
|
|||||||
| GPN 211 ZL 20 x 30 PCR-TPE, yellow | 20 | 22 | 30 | 45 | show | 21120300085 | |
|
|
|||||||
| GPN 211 ZL 22 x 20 PCR-TPE, yellow | 22 | 24 | 20 | 36 | show | 21122200085 | |
|
|
|||||||
| GPN 211 ZL 24 x 20 PCR-TPE, yellow | 24 | 26 | 20 | 35 | show | 21124200085 | |
|
|
|||||||
| GPN 211 ZL 26 x 20 PCR-TPE, yellow | 26 | 28 | 20 | 36,5 | show | 21126200085 | |
|
|
|||||||
| GPN 211 ZL 28 x 20 PCR-TPE, yellow | 28 | 30 | 20 | 36,5 | show | 21128200085 | |
|
|
|||||||
| GPN 211 ZL 30 x 20 PCR-TPE, yellow | 30 | 32 | 20 | 36,5 | show | 21130200085 | |
|
|
|||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Engraving corresponds to standard series GPN 210.
Quality advantages
Saves time.
With ergonomically designed removal tab for easy handling.
More versatile.
Suitable for different diameters due to flexible material. Free from plasticizers with SVHC** relevance.
Better.
Suitable for pipe ends, hoses, and studs. With circumferential sealing lip for a firm fit.
More resource-saving.
Blend of post-consumer recyclate and virgin material
