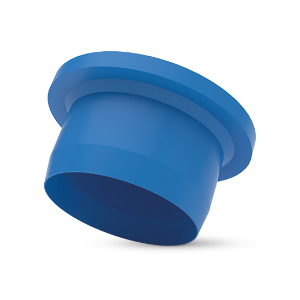

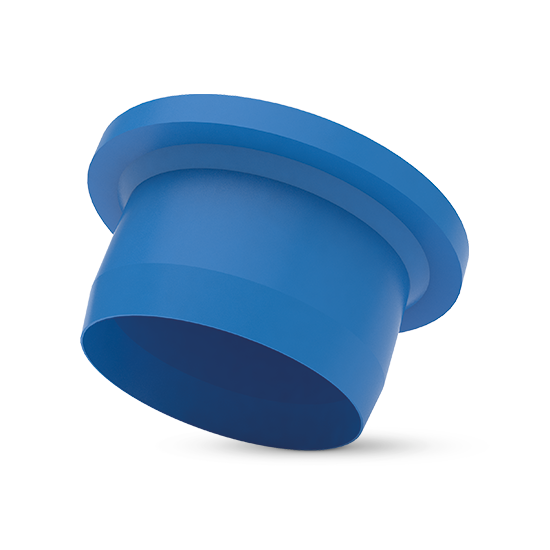

Closures - GPN 900

The GPN 900 closures can be used universally as a cap or a plug and have a cylindrical closure.


  • Closures for internal and external protection
  • Production in accordance with ISO 16232 in a specially designed cleanroom possible
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

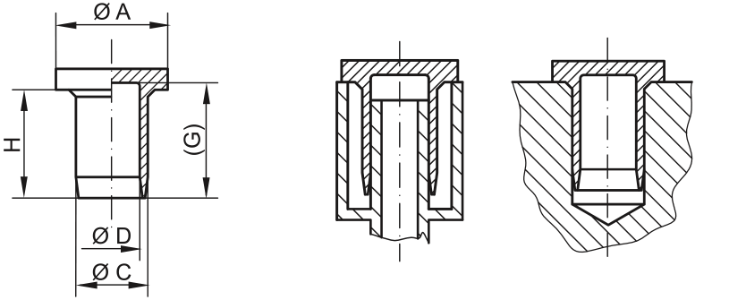

Drawing closures plugs - GPN 900
Material
PCR-PE / PE-LD
Technical data sheet
View prices and conditions directly online here and order even more easily.

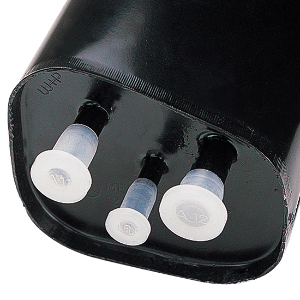

Internal application

External application

Internal application

Item
A
C
D
G
H
CAD
Order no.
GPN 900 A 7 PCR-PE / PE-LD 13 7,2 5,2 10,5 9 90000701073
GPN 900 A 8,5 PCR-PE / PE-LD 12 8,3 6 17 16 90000851073
GPN 900 A 8,9 PCR-PE / PE-LD 12 8,9 5,8 10,5 9,5 90000891073
GPN 900 A 9 PCR-PE / PE-LD 11 9 7,4 10,5 9,5 90000901073
GPN 900 A 10,5 PCR-PE / PE-LD 16 10,3 8 16,5 15,5 90001051073
GPN 900 A 11 PCR-PE / PE-LD 16 10,8 8 17 15,8 90001101073
GPN 900 A 12 PCR-PE / PE-LD 18 12 9,8 11,2 10 90001201073
GPN 900 A 12,5 PCR-PE / PE-LD 20 12,4 10 17,6 16,2 90001251073
GPN 900 A 12,5 x 9,5 PCR-PE / PE-LD 15 12,8 11,3 10,5 9,5 90043151073
GPN 900 A 13,5 PCR-PE / PE-LD 18 13,4 11,5 10 10 90001351073
GPN 900 A 14 PCR-PE / PE-LD 17 14,7 11,7 10,5 9,5 90001401073
GPN 900 A 14,5 PCR-PE / PE-LD 20 14,5 11,5 21,1 20,8 90001451073
GPN 900 A 15 PCR-PE / PE-LD 20 15,2 12,8 13,7 12,7 90001501073
GPN 900 A 16,5 PCR-PE / PE-LD 22 16,6 13,5 22 21 90001651073
GPN 900 A 16,5 x 9 PCR-PE / PE-LD 24 16,6 13,5 10,5 9 90016591073
GPN 900 A 16,9 PCR-PE / PE-LD 20 17 14,5 10,5 9,5 90001691073
GPN 900 A 17 PCR-PE / PE-LD 20 17 14,5 25,5 24 90001701073
GPN 900 A 18,5 PCR-PE / PE-LD 28 18,4 15,5 26 25 90001851073
GPN 900 A 18,5 x 21 PCR-PE / PE-LD 21 18,4 15,5 26 25 90018521073
GPN 900 A 19 PCR-PE / PE-LD 25 18,9 16,5 11 10,5 90001901073
GPN 900 A 19,5 PCR-PE / PE-LD 21,5 19,3 17,4 10,5 9,5 90001951073
GPN 900 A 20 PCR-PE / PE-LD 28 20,2 17,8 21,5 21 90002001073
GPN 900 A 21 PCR-PE / PE-LD 22 20,7 17,7 10,5 9,5 90002101073
GPN 900 A 21 x 16 PCR-PE / PE-LD 22,5 21 18,6 16 16 90021161073
GPN 900 A 22,5 PCR-PE / PE-LD 25 22,5 19,7 12,5 12 90002251073
GPN 900 A 24 PCR-PE / PE-LD 28 23,9 20,3 29,5 29 90002401073
GPN 900 A 24,5 PCR-PE / PE-LD 32 24,5 21,2 10,5 10 90002451073
GPN 900 A 24,5 x 25 PCR-PE / PE-LD 26 24,6 21,5 26 25 90043221073
GPN 900 A 24,7 PCR-PE / PE-LD 29 24,7 23,1 32 31,5 90002471073
GPN 900 A 25,5 PCR-PE / PE-LD 28 25,5 22,3 18,5 17 90002551073
GPN 900 A 27 PCR-PE / PE-LD 31 27 24,8 21,8 20,5 90002701073
GPN 900 A 28,5 PCR-PE / PE-LD 32 28,4 26 10 9,5 90002851073
GPN 900 A 30 PCR-PE / PE-LD 33 30 27,3 20,5 19 90003001073
GPN 900 A 31 PCR-PE / PE-LD 34 31 28 10,5 9,5 90003101073
GPN 900 A 32 PCR-PE / PE-LD 36 32,5 29,6 22,5 21 90003201073
GPN 900 A 33 PCR-PE / PE-LD 37 32,8 29,4 20 19 90003301073
GPN 900 A 39 PCR-PE / PE-LD 47 38,8 35,4 22 21 90003901073
GPN 900 A 41 PCR-PE / PE-LD 43 40,5 37,5 11 9,5 90004101073
GPN 900 A 45 PCR-PE / PE-LD 50 44,8 41,4 20 19 90004501073
GPN 900 A 51 PCR-PE / PE-LD 53,5 51 48,3 25,5 24 90005101073
GPN 900 A 52 PCR-PE / PE-LD 54,5 52 49 10,5 9,5 90005201073
GPN 900 A 64 PCR-PE / PE-LD 69 64 61,5 30,5 29 90006401073
GPN 900 A 69 PCR-PE / PE-LD 72 69,5 66,5 29,5 29 90006901073
GPN 900 A 76 PCR-PE / PE-LD 80 76 70 20,5 20 90007601073

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in Chapter 4 Materials and use.

Quality advantages

<p><strong>More versatile.</strong></p>

More versatile.

Cylindrical closure - can be used as plug or cap.
<p><strong>Cleaner.</strong></p>

Cleaner.

Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
<p><strong>More resource-saving.</strong></p>

More resource-saving.

Mix of post-consumer recyclate and virgin material
