Protective Caps - GPN 200 Type A

The GPN 200 Type A cylindrical protective caps are suitable for protecting pipe ends and shafts as well as threaded studs. The easy-to-grip, knurled collar ensures easy removal.


  • Protective caps for external protection
  • Production in accordance with ISO 16232 in a specially designed cleanroom possible
  • Also available as Type B with knurled outer wall
  • Two sustainable variants made from post-consumer recyclate available
more advantages

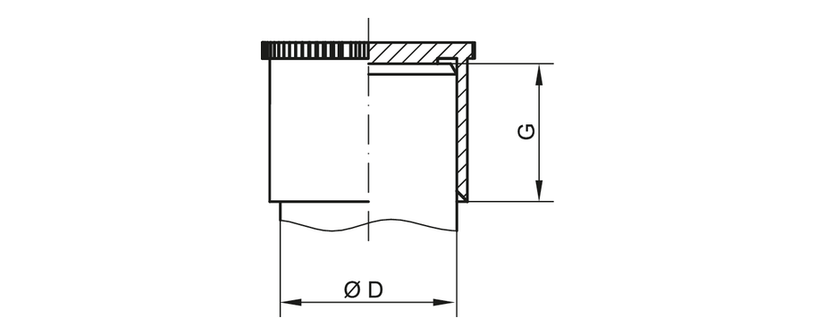

Dimensions

Colour
recycling blue
Material
PCR-PE
Applicable for
Item
External thread
D
G
CAD
Order no.
GPN 200 G 1 PCR-PE, recycling blue G 1 33 19,5 2000590RB61
GPN 200 G 1/2 PCR-PE, recycling blue G 1/2 21 15 2000567RB61
GPN 200 G 1/4 PCR-PE, recycling blue G 1/4 13 15 2000589RB61
GPN 200 G 3/4 PCR-PE, recycling blue G 3/4 26,5 16,5 2000568RB61
GPN 200 G 3/8 PCR-PE, recycling blue G 3/8 16,5 13 2000566RB61
GPN 200 Z 5 x 13 PCR-PE, recycling blue - 5 13 2000513RB61
GPN 200 Z 5 x 20 PCR-PE, recycling blue - 5 20 2000520RB61
GPN 200 Z 6 x 10 PCR-PE, recycling blue - 6 10 2000610RB61
GPN 200 Z 6 x 16 PCR-PE, recycling blue - 6 16 2000616RB61
GPN 200 Z 6 x 31 PCR-PE, recycling blue - 6 31 2000631RB61
GPN 200 Z 7 x 16 PCR-PE, recycling blue - 7 15,5 2000716RB61
GPN 200 Z 8 x 10 PCR-PE, recycling blue - 8 10 2000810RB61
GPN 200 Z 8 x 16 PCR-PE, recycling blue - 8 16 2000816RB61
GPN 200 Z 8 x 30 PCR-PE, recycling blue - 8 30 2000830RB61
GPN 200 Z 9 x 12 PCR-PE, recycling blue - 9 11,5 2000912RB61
GPN 200 Z 9 x 16 PCR-PE, recycling blue - 9 16 2000916RB61
GPN 200 Z 10 x 6 PCR-PE, recycling blue - 10 6 2001060RB61
GPN 200 Z 10 x 10 PCR-PE, recycling blue - 10 10 2001010RB61
GPN 200 Z 10 x 22 PCR-PE, recycling blue - 10 22 2001022RB61
GPN 200 Z 10 x 28 PCR-PE, recycling blue - 10 28 2001028RB61
GPN 200 Z 10 x 33 PCR-PE, recycling blue - 10 33 2001033RB61
GPN 200 Z 12 x 10 PCR-PE, recycling blue - 12 10 2001210RB61
GPN 200 Z 12 x 16 PCR-PE, recycling blue - 12 16 2001216RB61
GPN 200 Z 12 x 35 PCR-PE, recycling blue - 12 35 2001235RB61
GPN 200 Z 12,5 x 20 PCR-PE, recycling blue - 12,5 20 2001252RB61
GPN 200 Z 14 x 8 PCR-PE, recycling blue - 14 8 2001480RB61
GPN 200 Z 14 x 10 PCR-PE, recycling blue - 14 10 2001410RB61
GPN 200 Z 14 x 15 PCR-PE, recycling blue - 14 15 2001415RB61
GPN 200 Z 14 x 20 PCR-PE, recycling blue - 14 20 2001420RB61
GPN 200 Z 14 x 38 PCR-PE, recycling blue - 14 38 2001438RB61
GPN 200 Z 14,5 x 15 PCR-PE, recycling blue - 14,5 15 2001451RB61
GPN 200 Z 16 x 8 PCR-PE, recycling blue - 16 8 2001680RB61
GPN 200 Z 16 x 15 PCR-PE, recycling blue - 16 15 2001615RB61
GPN 200 Z 16 x 20 PCR-PE, recycling blue - 16 20 2001620RB61
GPN 200 Z 16 x 25 PCR-PE, recycling blue - 16 25 2001625RB61
GPN 200 Z 18 x 15 PCR-PE, recycling blue - 18 15 2001815RB61
GPN 200 Z 18 x 20 PCR-PE, recycling blue - 18 20 2001820RB61
GPN 200 Z 18 x 26 PCR-PE, recycling blue - 18 26 2001826RB61
GPN 200 Z 20 x 14 PCR-PE, recycling blue - 20 14 2002014RB61
GPN 200 Z 20 x 20 PCR-PE, recycling blue - 20 20 2002020RB61
GPN 200 Z 22 x 18 PCR-PE, recycling blue - 22 18 2002218RB61
GPN 200 Z 22 x 30 PCR-PE, recycling blue - 22 30 2002230RB61
GPN 200 Z 24 x 18 PCR-PE, recycling blue - 24 18 2002418RB61
New GPN 200 Z 27 X 20 PCR-PE, recycling blue - 27 20 2002720RB61
GPN 200 Z 28 x 20 PCR-PE, recycling blue - 28 20 2002820RB61
GPN 200 Z 30 x 22 PCR-PE, recycling blue - 30 22 2003022RB61
GPN 200 Z 32 x 22 PCR-PE, recycling blue - 32 22 2003222RB61
GPN 200 Z 33 x 25 PCR-PE, recycling blue - 33 25 2003325RB61
GPN 200 Z 35 x 25 PCR-PE, recycling blue - 35 25 2003525RB61
GPN 200 Z 36 x 25 PCR-PE, recycling blue - 36 25 2003625RB61
GPN 200 Z 38 x 25 PCR-PE, recycling blue - 38 25 2003825RB61
GPN 200 Z 40 x 27 PCR-PE, recycling blue - 40 27 2004027RB61
GPN 200 Z 42 x 27 PCR-PE, recycling blue - 42 27 2004227RB61
GPN 200 Z 45 x 30 PCR-PE, recycling blue - 45 30 2004530RB61
GPN 200 Z 48 x 30 PCR-PE, recycling blue - 48 30 2004830RB61
GPN 200 Z 50 x 30 PCR-PE, recycling blue - 50 30 2005030RB61

Dimensions in mm.

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Quality advantages

Cleaner.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Better.
Better.
Cylindrical caps with easy-to-grip knurled collar for protection of threaded studs, pipe ends and shafts.
More resource-saving.
More resource-saving.
The plastic used consists of 100 % recycled material.
