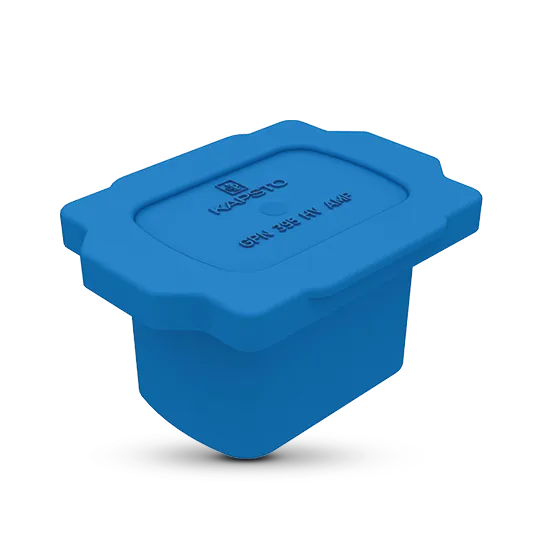

HV Connector Caps - GPN 395HV Connector Caps - GPN 395

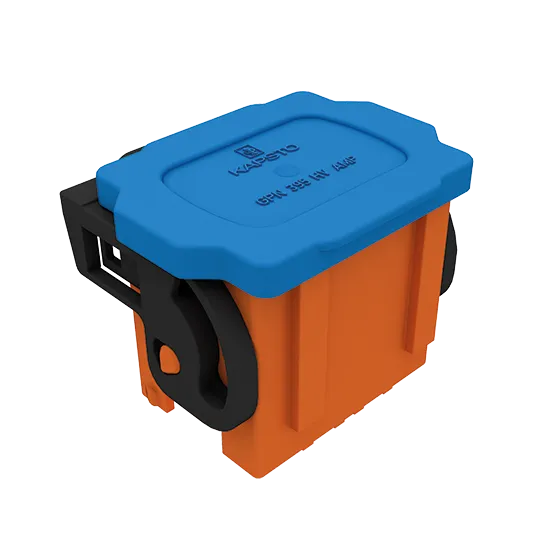

The GPN 395 high-voltage connector caps are suitable for use in parts and components for hybrid and electric vehicles It protects plugs, e.g. in the area of batteries, DC/DC converters, on-board chargers, power strips and high-voltage distribution, against corrosion and mechanical damage and offers protection against splash water in accordance with protection class IPX4. The plug cover has non-slip handle edges that enable quick removal, can be fitted on both sides and features a functional design as a registered design. The plastic used is made from post-consumer recycled material.

HV connector caps for external protection
Production in accordance with ISO 16232 in a specially designed cleanroom possible
Blue Angel-certified recycled material

This new series of standards is currently under development and will be available soon. The information provided is therefore provisional and subject to change. Our team will be happy to answer any questions you may have.

more advantages

100% Post-Consumer Recyclate

Dimensions

Colour

recycling blue

Material

PCR-PE

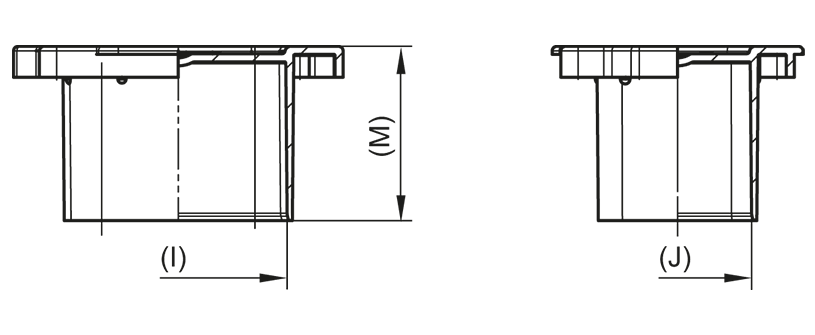

	Dimensions
Item	I	J	M	CAD	Order no.
Available soon GPN 395 HV 280-2 PCR-PE, recycling blue	27,6	17,7	23,2	show	39502010000

Available soon GPN 395 HV AMP PCR-PE, recycling blue	39,1	28,6	30,4	show	39506010000

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

Application guide


Item	Contact connections
Available soon GPN 395 HV AMP PCR-PE, recycling blue	AMP	5 7
Available soon GPN 395 HV 280-2 PCR-PE, recycling blue	HV 280 SI	2

The article consists of 98 % PCR-PE and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.

For these articles, colour deviations and black dots cannot be completely avoided in production and are permissible. We recommend carrying out functional tests before series production.
