Drawing screw cap - GPN 800
Screw Caps - GPN 800

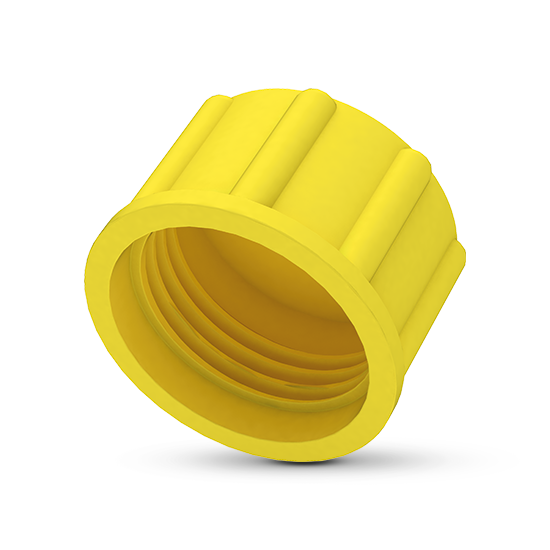

The GPN 800 screw caps are suitable for many different thread types, such as metric threads, pipe threads and imperial threads. Easy-to-grip external ribs for easy fitting by hand.
- Screw caps for external protection
100% Post-Consumer Recyclate
Virgin material
Dimensions
Colour
yellow
Material
PE-HD
Technical data sheet
|
Applicable for
|
Dimensions
|
|||||
|---|---|---|---|---|---|---|
|
Item
|
L
|
A
|
G
|
CAD
|
Order no.
|
|
| GPN 800 1 - 14 UNS PE-HD, yellow | 1 - 14 UNS | 33 | 14 | show | 80072100000 | |
|
|
||||||
| GPN 800 1 1/16 - 12 UN PE-HD, yellow | 1 1/16 - 12 UN | 34 | 23 | show | 80059460000 | |
|
|
||||||
| GPN 800 1 1/16 - 16 UN PE-HD, yellow | 1 1/16 - 16 UN | 34 | 14 | show | 80072120000 | |
|
|
||||||
| GPN 800 1 1/4 - 12 UNF PE-HD, yellow | 1 1/4 - 12 UNF | 38 | 14 | show | 80072150000 | |
|
|
||||||
| GPN 800 1 3/16 - 20 UN PE-HD, yellow | 1 3/16 - 20 UN | 38 | 14 | show | 80072140000 | |
|
|
||||||
| GPN 800 1 5/16 - 12 UN PE-HD, yellow | 1 5/16 - 12 UN | 40 | 24 | show | 80059450000 | |
|
|
||||||
| GPN 800 1 5/8 - 12 UN PE-HD, yellow | 1 5/8 - 12 UN | 50 | 17 | show | 80072170000 | |
|
|
||||||
| GPN 800 1 7/8 - 12 UN PE-HD, yellow | 1 7/8 - 12 UN | 55 | 17 | show | 80072210000 | |
|
|
||||||
| GPN 800 1/2 - 20 UNF PE-HD, yellow | 1/2 - 20 UNF | 18 | 15 | show | 80059500000 | |
|
|
||||||
| GPN 800 1/4 - 28 UNF PE-HD, yellow | 1/4 - 28 UNF | 12 | 8 | show | 80072070000 | |
|
|
||||||
| GPN 800 13/16 - 16 UN PE-HD, yellow | 13/16 - 16 UN | 26 | 12 | show | 80031600000 | |
|
|
||||||
| GPN 800 2 1/2 - 12 UN PE-HD, yellow | 2 1/2 - 12 UN | 72 | 18 | show | 80072260000 | |
|
|
||||||
| GPN 800 2 1/4 - 12 UN PE-HD, yellow | 2 1/4 - 12 UN | 66 | 18 | show | 80072250000 | |
|
|
||||||
| GPN 800 3/4 - 16 UNF PE-HD, yellow | 3/4 - 16 UNF | 24 | 18 | show | 80059480000 | |
|
|
||||||
| GPN 800 5/8 - 18 UNF PE-HD, yellow | 5/8 - 18 UNF | 19,3 | 14,2 | show | 80031820000 | |
|
|
||||||
| GPN 800 7/16 - 20 UNF PE-HD, yellow | 7/16 - 20 UNF | 15 | 12 | show | 80064550000 | |
|
|
||||||
| GPN 800 7/8 - 14 UNF PE-HD, yellow | 7/8 - 14 UNF | 27 | 20 | show | 80059470000 | |
|
|
||||||
| GPN 800 9/16 - 18 UNF PE-HD, yellow | 9/16 - 18 UNF | 18 | 12 | show | 80064560000 | |
|
|
||||||
| GPN 800 G 1 1/2 PE-HD, yellow | G 1 1/2 | 56 | 17 | show | 80075520000 | |
|
|
||||||
| GPN 800 G 1 1/4 PE-HD, yellow | G 1 1/4 | 47,7 | 17,7 | show | 80032180000 | |
|
|
||||||
| GPN 800 G 1 PE-HD, yellow | G 1 | 39 | 14 | show | 80035220000 | |
|
|
||||||
| GPN 800 G 1/2 PE-HD, yellow | G 1/2 | 25 | 14 | show | 80004370000 | |
|
|
||||||
| GPN 800 G 1/4 PE-HD, yellow | G 1/4 | 18 | 12 | show | 80003550000 | |
|
|
||||||
| GPN 800 G 1/8 PE-HD, yellow | G 1/8 | 14 | 8 | show | 80004140000 | |
|
|
||||||
| GPN 800 G 2 1/2 PE-HD, yellow | G 2 1/2 | 80,9 | 18 | show | 80032190000 | |
|
|
||||||
| GPN 800 G 2 PE-HD, yellow | G 2 | 68 | 18 | show | 80069010000 | |
|
|
||||||
| GPN 800 G 3/4 PE-HD, yellow | G 3/4 | 32 | 14 | show | 80036180000 | |
|
|
||||||
| GPN 800 G 3/8 PE-HD, yellow | G 3/8 | 21 | 12 | show | 80004260000 | |
|
|
||||||
| GPN 800 G 5/8 PE-HD, yellow | G 5/8 | 28 | 14 | show | 80006750000 | |
|
|
||||||
| GPN 800 M 8 PE-HD, yellow | M 8 | 12 | 8 | show | 80000080000 | |
|
|
||||||
| GPN 800 M 8 x 1 PE-HD, yellow | M 8 x 1 | 12 | 8 | show | 80008100000 | |
|
|
||||||
| GPN 800 M 10 PE-HD, yellow | M 10 | 14,5 | 8 | show | 80000100000 | |
|
|
||||||
| GPN 800 M 10 x 1 PE-HD, yellow | M 10 x 1 | 14 | 8 | show | 80010100000 | |
|
|
||||||
| GPN 800 M 12 PE-HD, yellow | M 12 | 16 | 12 | show | 80000120000 | |
|
|
||||||
| GPN 800 M 12 x 1 PE-HD, yellow | M 12 x 1 | 16 | 12 | show | 80012100000 | |
|
|
||||||
| GPN 800 M 12 x 1,5 PE-HD, yellow | M 12 x 1,5 | 16 | 12 | show | 80012150000 | |
|
|
||||||
| GPN 800 M 14 PE-HD, yellow | M 14 | 18 | 12 | show | 80000140000 | |
|
|
||||||
| GPN 800 M 14 x 1,5 PE-HD, yellow | M 14 x 1,5 | 18 | 12 | show | 80014150000 | |
|
|
||||||
| GPN 800 M 16 PE-HD, yellow | M 16 | 21 | 12 | show | 80000160000 | |
|
|
||||||
| GPN 800 M 16 x 1,5 PE-HD, yellow | M 16 x 1,5 | 21 | 12 | show | 80016150000 | |
|
|
||||||
| GPN 800 M 18 PE-HD, yellow | M 18 | 22 | 12 | show | 80000180000 | |
|
|
||||||
| GPN 800 M 18 x 1,5 PE-HD, yellow | M 18 x 1,5 | 22 | 12 | show | 80018150000 | |
|
|
||||||
| GPN 800 M 20 PE-HD, yellow | M 20 | 25 | 14 | show | 80000200000 | |
|
|
||||||
| GPN 800 M 20 x 1,5 PE-HD, yellow | M 20 x 1,5 | 25 | 14 | show | 80020150000 | |
|
|
||||||
| GPN 800 M 22 PE-HD, yellow | M 22 | 28 | 14 | show | 80000220000 | |
|
|
||||||
| GPN 800 M 22 x 1,5 PE-HD, yellow | M 22 x 1,5 | 28 | 14 | show | 80022150000 | |
|
|
||||||
| GPN 800 M 22 x 2 PE-HD, yellow | M 22 x 2 | 28 | 14 | show | 80022200000 | |
|
|
||||||
| GPN 800 M 23 x 1,5 PE-HD, yellow | M 23 x 1,5 | 29 | 22 | show | 80023150000 | |
|
|
||||||
| GPN 800 M 24 PE-HD, yellow | M 24 | 32 | 14 | show | 80000240000 | |
|
|
||||||
| GPN 800 M 24 x 1,5 PE-HD, yellow | M 24 x 1,5 | 30 | 14 | show | 80024150000 | |
|
|
||||||
| GPN 800 M 25 x 1,5 PE-HD, yellow | M 25 x 1,5 | 33 | 14 | show | 80025150000 | |
|
|
||||||
| GPN 800 M 26 x 1,5 PE-HD, yellow | M 26 x 1,5 | 34 | 11 | show | 80026150000 | |
|
|
||||||
| GPN 800 M 27 PE-HD, yellow | M 27 | 35 | 14 | show | 80000270000 | |
|
|
||||||
| GPN 800 M 28 x 1,5 PE-HD, yellow | M 28 x 1,5 | 34,5 | 28 | show | 80028150000 | |
|
|
||||||
| GPN 800 M 30 PE-HD, yellow | M 30 | 38 | 14 | show | 80000300000 | |
|
|
||||||
| GPN 800 M 30 x 1,5 PE-HD, yellow | M 30 x 1,5 | 36 | 14 | show | 80030150000 | |
|
|
||||||
| GPN 800 M 30 x 2 PE-HD, yellow | M 30 x 2 | 38 | 14 | show | 80030200000 | |
|
|
||||||
| GPN 800 M 36 x 1,5 PE-HD, yellow | M 36 x 1,5 | 44 | 17 | show | 80036150000 | |
|
|
||||||
| GPN 800 M 36 x 2 PE-HD, yellow | M 36 x 2 | 44 | 17 | show | 80036200000 | |
|
|
||||||
| GPN 800 M 42 x 2 PE-HD, yellow | M 42 x 2 | 50 | 15 | show | 80042200000 | |
|
|
||||||
| GPN 800 M 45 x 1,5 PE-HD, yellow | M 45 x 1,5 | 53 | 15 | show | 80045150000 | |
|
|
||||||
| GPN 800 M 45 x 2 PE-HD, yellow | M 45 x 2 | 53 | 15 | show | 80045200000 | |
|
|
||||||
| GPN 800 M 52 x 2 PE-HD, yellow | M 52 x 2 | 60 | 15 | show | 80052200000 | |
|
|
||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
