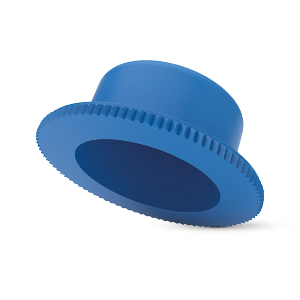

Protective elements cap - GPN 950 made of 100% post-consumer recyclate (PCR-PE)

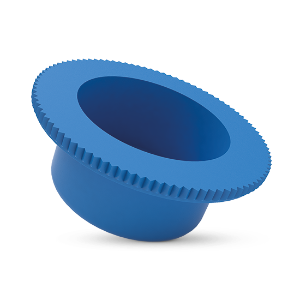

Protective elements - GPN 950 made of 100% post-consumer recyclate (PCR-PE)
Application protective elements cap - GPN 950
CAD for website
Protective Plugs - GPN 950
The GPN 950 protective elements can be used universally as a cap or a plug and can be used for bore holes, internal and external threads and pipe ends. They have a knurled collar for better fitting and removal.
- Protective elements for internal and external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Two sustainable variants made from post-consumer recyclate available
100% Post-Consumer Recyclate
Recycling blend
Virgin material
Dimensions
Colour
recycling blue
Material
PCR-PE
|
|
Internal application |
External application |
Internal application |
|
||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
A
|
C
|
D
|
G
|
H
|
CAD
|
Order no.
|
|
| GPN 950 / 0054 PCR-PE, recycling blue | 10 | 5,4 | 3,9 | 7,3 | 6 | show | 9500054RB61 | |
|
|
||||||||
| GPN 950 / 0067 PCR-PE, recycling blue | 10,5 | 6,7 | 5,2 | 7,8 | 7 | show | 9500067RB61 | |
|
|
||||||||
| GPN 950 / 0072 PCR-PE, recycling blue | 14 | 7,2 | 5,7 | 7,2 | 6,5 | show | 9500072RB61 | |
|
|
||||||||
| GPN 950 / 0092 PCR-PE, recycling blue | 16 | 9,6 | 7,7 | 7,2 | 6,5 | show | 9500092RB61 | |
|
|
||||||||
| GPN 950 / 0105 PCR-PE, recycling blue | 20 | 10,5 | 8,4 | 6,2 | 5 | show | 9500105RB61 | |
|
|
||||||||
| GPN 950 / 0106 PCR-PE, recycling blue | 18 | 10,6 | 9 | 9,2 | 8,5 | show | 9500106RB61 | |
|
|
||||||||
| GPN 950 / 0126 PCR-PE, recycling blue | 20 | 12,6 | 11 | 9,2 | 8 | show | 9500126RB61 | |
|
|
||||||||
| GPN 950 / 0131 PCR-PE, recycling blue | 22 | 13,1 | 11,5 | 9,2 | 8 | show | 9500131RB61 | |
|
|
||||||||
| GPN 950 / 0147 PCR-PE, recycling blue | 22 | 14,7 | 13,1 | 11,2 | 10 | show | 9500147RB61 | |
|
|
||||||||
| GPN 950 / 0157 PCR-PE, recycling blue | 20 | 15,7 | 13,5 | 8,9 | 8 | show | 9500157RB61 | |
|
|
||||||||
| GPN 950 / 0168 PCR-PE, recycling blue | 24 | 16,8 | 15,5 | 9,2 | 8,5 | show | 9500168RB61 | |
|
|
||||||||
| GPN 950 / 0180 PCR-PE, recycling blue | 24 | 18 | 16 | 8 | 7,2 | show | 9500180RB61 | |
|
|
||||||||
| GPN 950 / 0188 PCR-PE, recycling blue | 28 | 18,8 | 17,5 | 11,2 | 10 | show | 9500188RB61 | |
|
|
||||||||
| GPN 950 / 0193 PCR-PE, recycling blue | 28 | 19,3 | 17,7 | 11,2 | 10 | show | 9500193RB61 | |
|
|
||||||||
| GPN 950 / 0208 PCR-PE, recycling blue | 30 | 20,8 | 19,5 | 11,2 | 10 | show | 9500208RB61 | |
|
|
||||||||
| GPN 950 / 0229 PCR-PE, recycling blue | 31,8 | 22,9 | 21,7 | 11,4 | 10 | show | 9500229RB61 | |
|
|
||||||||
| GPN 950 / 0250 PCR-PE, recycling blue | 33,5 | 25,1 | 23,6 | 11,3 | 10 | show | 9500250RB61 | |
|
|
||||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
More versatile.
Can be used as cap or plug.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Better.
With knurled collar. Suitable for bore holes, internal and external threads, or pipe ends.
More resource-saving.
The plastic used consists of 100 % recycled material.
Alternative standard series
