Protective Covers - GPN 695

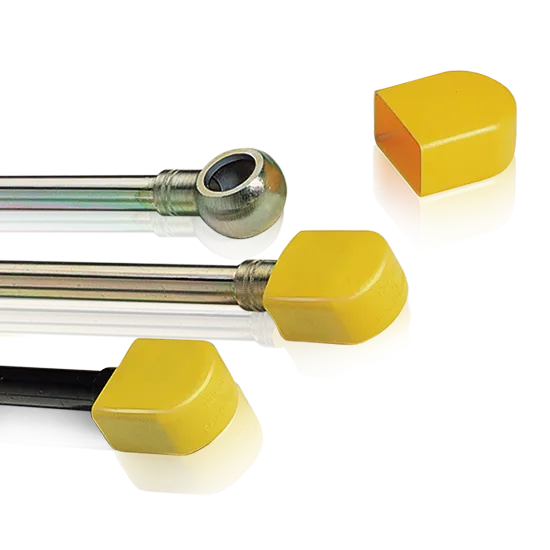

The GPN 695 protective covers are suitable for banjo unions as per DIN 7642 Type B and E as well as for non-standardised banjo unions. The clamping ring is centered in the ring opening of the hollow screw and prevents the ingress of dirt.

Protective covers for external protection

more advantages

Virgin material

Dimensions

Colour

yellow

Material

PE-HD

	Applicable for ring connections	Dimensions
Item	Pipe outside diameter	D	E	G	CAD	Order no.
GPN 695 BE 6 PE-HD, yellow	6	17	9,8	19,6	show	69500060000

GPN 695 BE 8 PE-HD, yellow	8	20	11,6	23,5	show	69500080000

GPN 695 BE 10 PE-HD, yellow	10	24	13,8	27,6	show	69500100000

GPN 695 BE 12 PE-HD, yellow	12	28	15,8	31,2	show	69500120000

GPN 695 BE 15 PE-HD, yellow	15	32,2	19,6	35,3	show	69500150000

GPN 695 BE 18 PE-HD, yellow	18	40	24,8	43	show	69500180000

Dimensions in mm.

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Quality advantages

Better fit.

Suitable for ring-fittings in accordance with DIN 7642 design B and E.

Better.

The internal clamping ring is centered in the ring opening of the hollow screw, thereby preventing an ingress of dirt. Also suitable for non standard ring-type nipples.
