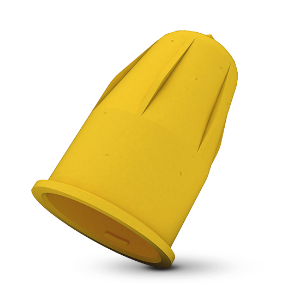

Protective Caps - GPN 240

The GPN 240 protective caps are suitable for protecting the mating surfaces of SAE quick-connect plugs. The protective cap is designed not to touch the sealing surface of the SAE connector and is suitable for pressure testing within certain limits.


  • Protective caps for external protection
  • Production in accordance with ISO 16232 in a specially designed cleanroom possible
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

CAD for website
Material
PCR-PE / PE-LD
Technical data sheet
View prices and conditions directly online here and order even more easily.
Applicable for
Dimensions
Item
SAE-Plug NW
A
D
G
CAD
Order no.
GPN 240 MT 8 PCR-PE / PE-LD 8 14,7 10,9 24,7 24000080073
GPN 240 MT 9,5 PCR-PE / PE-LD 9,5 16,7 12,9 25,1 24000950073
GPN 240 MT 10 PCR-PE / PE-LD 10 17,2 13,4 27,8 24000100073
GPN 240 MT 12 PCR-PE / PE-LD 12 20,3 16,5 29,6 24000120073
GPN 240 MT 18 PCR-PE / PE-LD 18 24,8 21 29,6 24000180073

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in Chapter 4 Materials and use.

Quality advantages

<p><strong>Better fit.</strong></p>

Better fit.

For protecting the mating surfaces of SAE quick-connect plugs.
<p><strong>Seals better.</strong></p>

Seals better.

Suitable for pressure testing depending on the application.
<p><strong>Cleaner.</strong></p>

Cleaner.

Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
<p><strong>Better.</strong></p>

Better.

The sealing surface of the SAE connector remains untouched.
<p><strong>More resource-saving.</strong></p>

More resource-saving.

Mix of post-consumer recyclate and virgin material
