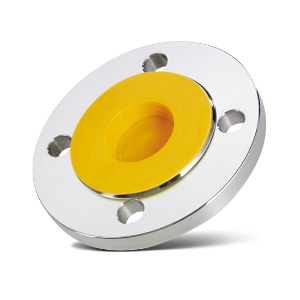

Application flange covers - GPN 650 Form B

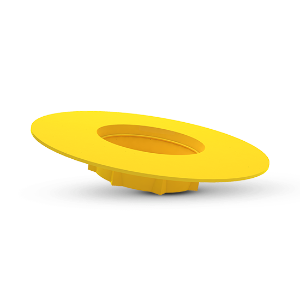

Flange Covers - GPN 650 Type B

The GPN 650 Type B flange covers protect flanges in accordance with DIN EN 1092-1 and DIN 28117 against damage and dirt, seal the opening and protect the sealing face of the flange fitting. The flange covers have additional clamping ribs on the conical shaft for accommodating larger tolerances.

Flange covers for internal protection
Also available in Type A without clamping ribs
Two sustainable variants made from post-consumer recyclate available

more advantages

100% Post-Consumer Recyclate

Recycling blend

Virgin material

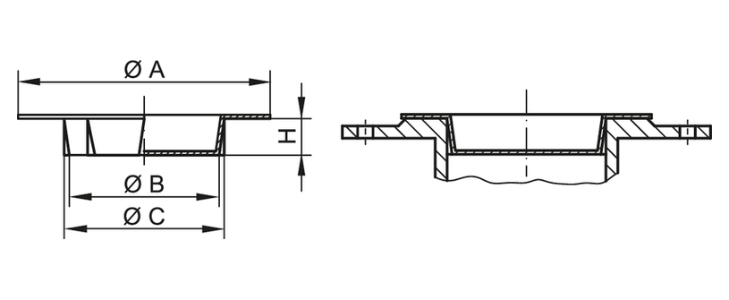

Dimensions

Colour

yellow

Material

PCR-PE / PE-LD

Technical data sheet

show

View prices and conditions directly online here and order even more easily.

	Applicable for	Dimensions
Item	NW mm	A	B	C	H	CAD	Order no.
GPN 650 / 10-R PCR-PE / PE-LD, yellow	10	40	7,5	10,5	10	show	65100100073

GPN 650 / 100-R PCR-PE / PE-LD, yellow	100	162	93	102	20	show	65101000073

GPN 650 / 125-R PCR-PE / PE-LD, yellow	125	205	118	127	20	show	65101250073

GPN 650 / 15-R PCR-PE / PE-LD, yellow	15	45	12,5	15,8	10	show	65100150073

GPN 650 / 150-R PCR-PE / PE-LD, yellow	150	245	140	152	20	show	65101500073

GPN 650 / 20-R PCR-PE / PE-LD, yellow	20	59	16	22	15	show	65100200073

GPN 650 / 25-R PCR-PE / PE-LD, yellow	25	68	21	26	15	show	65100250073

GPN 650 / 32-R PCR-PE / PE-LD, yellow	32	78	28	33,5	15	show	65100320073

GPN 650 / 40-R PCR-PE / PE-LD, yellow	40	88	36	41,5	15	show	65100400073

GPN 650 / 50-R PCR-PE / PE-LD, yellow	50	102	46	51	15	show	65100500073

GPN 650 / 65-R PCR-PE / PE-LD, yellow	65	122	60	66	20	show	65100650073

GPN 650 / 80-R PCR-PE / PE-LD, yellow	80	138	74,5	81	20	show	65100800073
