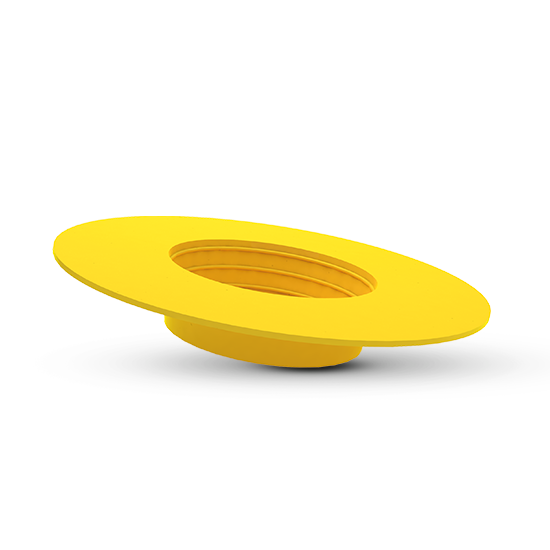

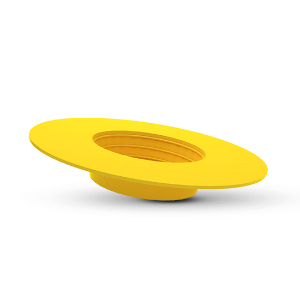

Flange Covers - GPN 650 Type A

The GPN 650 Type A flange covers protect flanges as per DIN EN 1092-1 and DIN 28117 against damage and dirt, seal the opening and protect the sealing face of the flange fitting.





  • Flange covers for internal protection
  • Also available in Type B with clamping ribs
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

Drawing Flange covers - GPN 650 Form A
Colour
yellow
Material
PCR-PE / PE-LD
View prices and conditions directly online here and order even more easily.
Applicable for
Dimensions
Item
NW mm
A
B
C
H
CAD
Order no.
GPN 650 / 15 PCR-PE / PE-LD, yellow 15 45 14 16,8 10 65000150073
GPN 650 / 20 PCR-PE / PE-LD, yellow 20 58 19 22,8 15 65000200073
GPN 650 / 25 PCR-PE / PE-LD, yellow 25 68 23 27 15 65000250073
GPN 650 / 32 PCR-PE / PE-LD, yellow 32 78 30 34 14,8 65000320073
GPN 650 / 40 PCR-PE / PE-LD, yellow 40 88 38 42 15 65000400073
GPN 650 / 50 PCR-PE / PE-LD, yellow 50 102 48 52 15 65000500073
GPN 650 / 65 PCR-PE / PE-LD, yellow 65 122 62 67,8 20 65000650073
GPN 650 / 70 PCR-PE / PE-LD, yellow 70 128 67 73,4 20 65000700073
GPN 650 / 80 PCR-PE / PE-LD, yellow 80 138 77 82,8 20 65000800073
GPN 650 / 100 PCR-PE / PE-LD, yellow 100 162 97 103,3 20 65001000073
GPN 650 / 125 PCR-PE / PE-LD, yellow 125 205 122 127,6 20 65001250073
GPN 650 / 140 PCR-PE / PE-LD, yellow 140 220 137 143,8 20 65001400073
GPN 650 / 150 PCR-PE / PE-LD, yellow 150 245 147 152,8 20 65001500073

Dimensions in mm.

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Quality advantages

<p><strong>Better fit.</strong></p>

Better fit.

Protection for flanges in accordance with DIN EN 1092-1 and DIN EN 28117.
<p><strong>Better.</strong></p>

Better.

Closes the opening and protects the sealing face of the flange fitting.
<p><strong>More resource-saving.</strong></p>

More resource-saving.

Mix of post-consumer recyclate and virgin material
