VDA sealing caps - GPN 242
The VDA sealing caps GPN 242 are suitable for protecting the connection area of VDA quick-connect spigots and are suitable for variants with and without anti-turn device. The radial symmetrical design enables automated fitting, while the easy-to-grip and knurled shaft ensures quick removal. Clamping through clamping bars allows pressure to equalise, and the VDA quick-connect spigots are protected all the way to the chamfer. The plastic used consists of post-consumer recycled material.
- VDA sealing caps for VDA PS3 QC spigots
- Production in a specially designed cleanroom is possible in accordance with ISO 16232
- The recycled material used is Blue Angel certified
100% Post-Consumer Recyclate

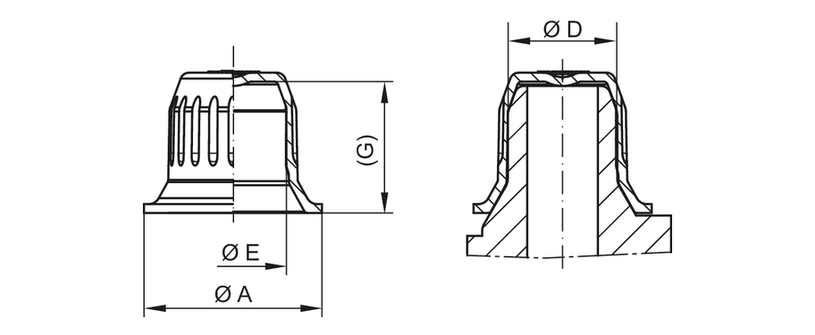

Dimensions
|
Applicable for
|
Dimensions
|
|||||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
VDA nozzle NW
|
D
|
A
|
E
|
G
|
CAD
|
Order no.
|
|
| New GPN 242 NSC 12 PCR-PE, blue | 12 | 16,6 | 23,5 | 15,9 | 14,9 | show | 24201120000 | |
|
|
||||||||
| New GPN 242 NSC 14 PCR-PE, blue | 14 | 19,5 | 25,6 | 18,8 | 13,9 | show | 24201140000 | |
|
|
||||||||
| New GPN 242 NSC 16 PCR-PE, blue | 16 | 23 | 29,1 | 20,2 | 17,2 | show | 24201160000 | |
|
|
||||||||
| Available soon GPN 242 NSC 22 PCR-PE, blue | 22 | 28,3 | 37,4 | 28,1 | 18,5 | show | 24201220000 | |
|
|
||||||||
| New GPN 242 NSC 28 PCR-PE, blue | 28 | 34,3 | 43,3 | 34,1 | 18,5 | show | 24201280000 | |
|
|
||||||||
| New GPN 242 NW 6 PCR-PE, blue | 6 | 10,4 | 18,2 | 10,1 | 13,9 | show | 24200060000 | |
|
|
||||||||
| New GPN 242 NW 8 PCR-PE, blue | 8 | 12,4 | 20,2 | 12,1 | 14,9 | show | 24200080000 | |
|
|
||||||||
| New GPN 242 NW 12 PCR-PE, blue | 12 | 16,3 | 23,5 | 16 | 14,9 | show | 24200120000 | |
|
|
||||||||
| New GPN 242 NW 14 PCR-PE, blue | 14 | 17,7 | 24 | 17 | 12,9 | show | 24200140000 | |
|
|
||||||||
| New GPN 242 NW 16 PCR-PE, blue | 16 | 22,3 | 30,6 | 22 | 16,9 | show | 24200160000 | |
|
|
||||||||
| New GPN 242 NW 18 PCR-PE, blue | 18 | 24,3 | 33,2 | 23,9 | 17,4 | show | 24200180000 | |
|
|
||||||||
| New GPN 242 NW 20 PCR-PE, blue | 20 | 26,3 | 35,2 | 26 | 17,4 | show | 24200200000 | |
|
|
||||||||
| New GPN 242 NW 26 PCR-PE, blue | 26 | 32,5 | 41,4 | 32,2 | 18,4 | show | 24200260000 | |
|
|
||||||||
| New GPN 242 NW 32 PCR-PE, blue | 32 | 38,8 | 47,4 | 38,2 | 18,4 | show | 24200320000 | |
|
|
||||||||
| Available soon GPN 242 NW 35 PCR-PE, blue | 35 | 44 | 49,6 | 40,7 | 18,5 | show | 24200350000 | |
|
|
||||||||
| New GPN 242 NW 40 PCR-PE, blue | 40 | 46 | 54,8 | 45,2 | 22,5 | show | 24200400000 | |
|
|
||||||||
| New GPN 242 NW 45 PCR-PE, blue | 45 | 51,5 | 60,4 | 50,7 | 21,4 | show | 24200450000 | |
|
|
||||||||
| Available soon GPN 242 NW 50 PCR-PE, blue | 50 | 56,5 | 65,4 | 55,7 | 22 | show | 24200500000 | |
|
|
||||||||
Dimensions in mm.
The article consists of 98 % PCR-PE and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Quality advantages
More resource-saving.
Better fit.
Cleaner.
Better.
