HV Connector plugs - GPN 382

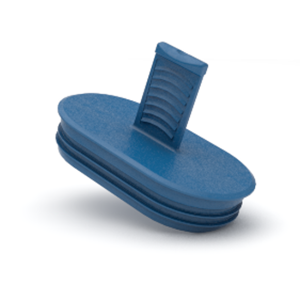

The HV protective plugs with tab GPN 382 are suitable for use in parts and components for hybrid or electric vehicles. The handy grip tab ensures and the circumferential lamellae enable an optimum clamp fit. Within certain limits, the HV protection prevents the ingress of liquids. The plastic used consists of post-consumer recyclate.


  • Contact protection for internal protection
  • Production in accordance with ISO 16232 possible in a specially equipped clean room

This new series of standards is currently under development and will be available soon. The information provided is therefore provisional and subject to change. Our team will be happy to answer any questions you may have.

more advantages

Dimensions

Zeichnung GPN 382 - Kontaktschutz
Colour
recycling blue
Material
PCR-PE
Dimensions
Dimensions
Item
B
C
H
I
J
M
R
CAD
Order no.
Available soon GPN 382 Class 3 PCR-PE, recycling blue 25,7 45,4 9 44,7 25,8 30 25,8 38207010000

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

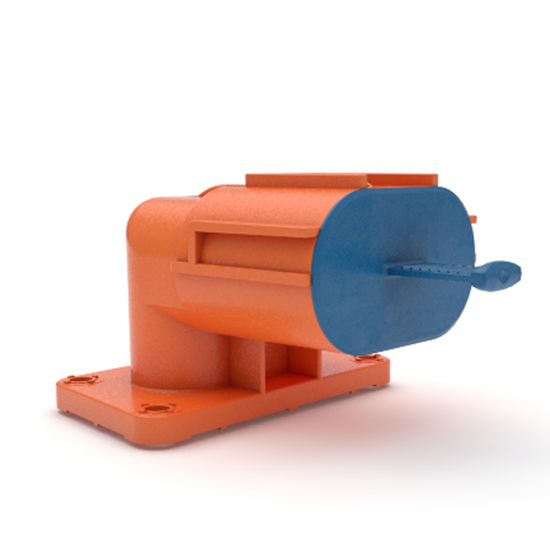

Application guide

Item
Contact connections
Available soon GPN 382 Class 3 PCR-PE, recycling blue
  • 2

The article consists of 98 % PCR-PP and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.

For these articles, colour deviations and black dots cannot be completely avoided in production and are permissible. We recommend carrying out functional tests before series production.

Quality advantages

<p><strong>More resource-saving.</strong></p>

More resource-saving.

The plastic used consists of 100 % recycled material.
<p><strong>Better fit.</strong></p>

Better fit.

Protection for High Voltage Connector Systems using our registered design.
<p><strong>Saves time.</strong></p>

Saves time.

With practical tab for fast removal.
<p><strong>Seals better.</strong></p>

Seals better.

Prevents penetration of liquids within certain limits.
<p><strong>Cleaner.</strong></p>

Cleaner.

Production in accordance with VDA Band 19 and ISO 16232 in our cleanroom on request.
