Universal Protection - GPN 610

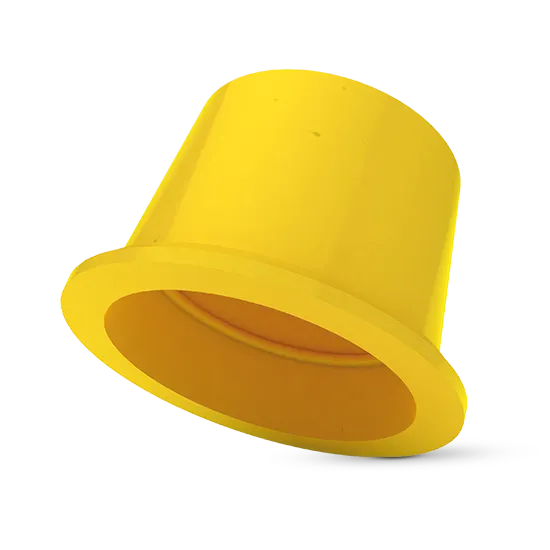

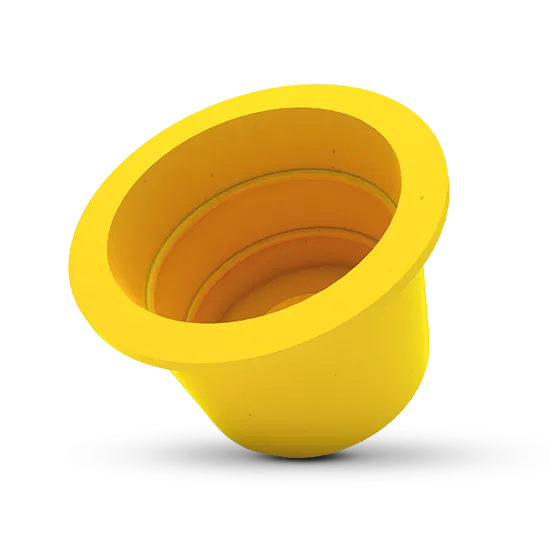

The GPN 610 universal protection can be used as a cap or a plug and protects bore holes and openings as well as bolts and various metric threads and pipe threads. The conical design is ideal for accommodating tolerances.
- Universal protection for internal and external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
- Two sustainable variants made from post-consumer recyclate available
Dimensions

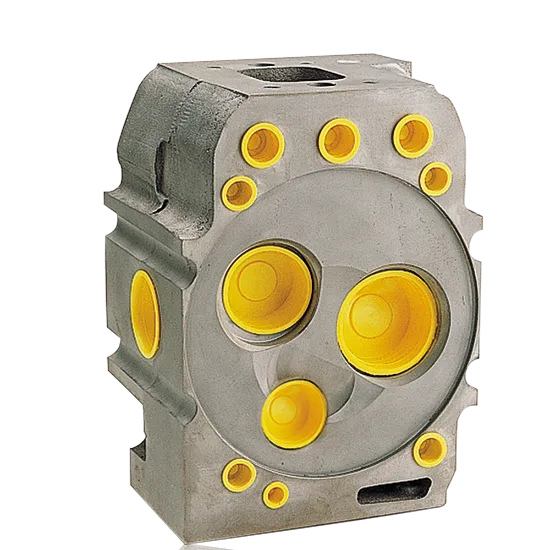

Indoor application
|

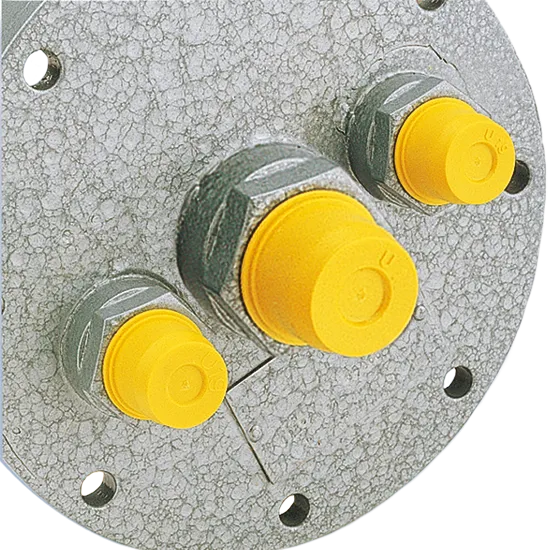

Outdoor application
|
Indoor application
|
||||||||
---|---|---|---|---|---|---|---|---|---|---|
Item
|
A
|
B
|
C
|
D
|
E
|
G
|
H
|
CAD
|
Order no.
|
|
GPN 610 U 1 PCR-PE / PE-LD, yellow | 0.394 | 0.173 | 0.244 | 0.181 | 0.11 | 0.425 | 0.394 | show | 61000010073 | |
|
||||||||||
GPN 610 U 2 PCR-PE / PE-LD, yellow | 0.433 | 0.236 | 0.307 | 0.244 | 0.173 | 0.425 | 0.394 | show | 61000020073 | |
|
||||||||||
GPN 610 U 3 PCR-PE / PE-LD, yellow | 0.512 | 0.299 | 0.37 | 0.307 | 0.236 | 0.394 | 0.394 | show | 61000030073 | |
|
||||||||||
GPN 610 U 4 PCR-PE / PE-LD, yellow | 0.551 | 0.331 | 0.402 | 0.339 | 0.268 | 0.394 | 0.394 | show | 61000040073 | |
|
||||||||||
GPN 610 U 5 PCR-PE / PE-LD, yellow | 0.551 | 0.362 | 0.433 | 0.366 | 0.295 | 0.394 | 0.394 | show | 61000050073 | |
|
||||||||||
GPN 610 U 6 PCR-PE / PE-LD, yellow | 0.591 | 0.39 | 0.461 | 0.398 | 0.327 | 0.394 | 0.394 | show | 61000060073 | |
|
||||||||||
GPN 610 U 7 PCR-PE / PE-LD, yellow | 0.63 | 0.417 | 0.488 | 0.425 | 0.354 | 0.394 | 0.394 | show | 61000070073 | |
|
||||||||||
GPN 610 U 8 PCR-PE / PE-LD, yellow | 0.669 | 0.445 | 0.516 | 0.441 | 0.374 | 0.394 | 0.394 | show | 61000080073 | |
|
||||||||||
GPN 610 U 9 PCR-PE / PE-LD, yellow | 0.709 | 0.48 | 0.555 | 0.492 | 0.409 | 0.472 | 0.472 | show | 61000090073 | |
|
||||||||||
GPN 610 U 10 PCR-PE / PE-LD, yellow | 0.709 | 0.492 | 0.575 | 0.524 | 0.441 | 0.472 | 0.472 | show | 61000100073 | |
|
||||||||||
GPN 610 U 11 PCR-PE / PE-LD, yellow | 0.748 | 0.531 | 0.614 | 0.551 | 0.469 | 0.472 | 0.472 | show | 61000110073 | |
|
||||||||||
GPN 610 U 12 PCR-PE / PE-LD, yellow | 0.748 | 0.551 | 0.634 | 0.571 | 0.488 | 0.472 | 0.472 | show | 61000120073 | |
|
||||||||||
GPN 610 U 13 PCR-PE / PE-LD, yellow | 0.827 | 0.591 | 0.669 | 0.61 | 0.52 | 0.512 | 0.512 | show | 61000130073 | |
|
||||||||||
GPN 610 U 14 PCR-PE / PE-LD, yellow | 0.866 | 0.642 | 0.732 | 0.669 | 0.579 | 0.512 | 0.512 | show | 61000140073 | |
|
||||||||||
GPN 610 U 15 PCR-PE / PE-LD, yellow | 0.866 | 0.681 | 0.764 | 0.693 | 0.61 | 0.512 | 0.512 | show | 61000150073 | |
|
||||||||||
GPN 610 U 16 PCR-PE / PE-LD, yellow | 0.945 | 0.689 | 0.791 | 0.728 | 0.626 | 0.591 | 0.591 | show | 61000160073 | |
|
||||||||||
GPN 610 U 17 PCR-PE / PE-LD, yellow | 0.984 | 0.732 | 0.827 | 0.764 | 0.661 | 0.591 | 0.591 | show | 61000170073 | |
|
||||||||||
GPN 610 U 18 PCR-PE / PE-LD, yellow | 0.984 | 0.748 | 0.85 | 0.787 | 0.685 | 0.591 | 0.591 | show | 61000180073 | |
|
||||||||||
GPN 610 U 19 PCR-PE / PE-LD, yellow | 1.063 | 0.803 | 0.913 | 0.85 | 0.74 | 0.63 | 0.63 | show | 61000190073 | |
|
||||||||||
GPN 610 U 20 PCR-PE / PE-LD, yellow | 1.102 | 0.815 | 0.925 | 0.862 | 0.752 | 0.63 | 0.63 | show | 61000200073 | |
|
||||||||||
GPN 610 U 21 PCR-PE / PE-LD, yellow | 1.142 | 0.874 | 0.976 | 0.906 | 0.803 | 0.63 | 0.63 | show | 61000210073 | |
|
||||||||||
GPN 610 U 22 PCR-PE / PE-LD, yellow | 1.181 | 0.913 | 1.035 | 0.961 | 0.835 | 0.709 | 0.709 | show | 61000220073 | |
|
||||||||||
GPN 610 U 23 PCR-PE / PE-LD, yellow | 1.26 | 0.965 | 1.094 | 1.031 | 0.902 | 0.748 | 0.748 | show | 61000230073 | |
|
||||||||||
GPN 610 U 24 PCR-PE / PE-LD, yellow | 1.299 | 1.004 | 1.15 | 1.091 | 0.933 | 0.748 | 0.748 | show | 61000240073 | |
|
||||||||||
GPN 610 U 241 PCR-PE / PE-LD, yellow | 1.299 | 1.039 | 1.197 | 1.138 | 0.98 | 0.748 | 0.748 | show | 61002410073 | |
|
||||||||||
GPN 610 U 25 PCR-PE / PE-LD, yellow | 1.378 | 1.094 | 1.224 | 1.161 | 1.031 | 0.748 | 0.748 | show | 61000250073 | |
|
||||||||||
GPN 610 U 26 PCR-PE / PE-LD, yellow | 1.457 | 1.173 | 1.283 | 1.224 | 1.114 | 0.63 | 0.63 | show | 61000260073 | |
|
||||||||||
GPN 610 U 27 PCR-PE / PE-LD, yellow | 1.496 | 1.236 | 1.382 | 1.291 | 1.169 | 0.827 | 0.827 | show | 61000270073 | |
|
||||||||||
GPN 610 U 28 PCR-PE / PE-LD, yellow | 1.614 | 1.311 | 1.461 | 1.398 | 1.248 | 0.866 | 0.866 | show | 61000280073 | |
|
||||||||||
GPN 610 U 29 PCR-PE / PE-LD, yellow | 1.772 | 1.445 | 1.594 | 1.535 | 1.386 | 0.866 | 0.866 | show | 61000290073 | |
|
||||||||||
GPN 610 U 291 PCR-PE / PE-LD, yellow | 1.772 | 1.512 | 1.602 | 1.543 | 1.453 | 0.512 | 0.512 | show | 61002910073 | |
|
||||||||||
GPN 610 U 30 PCR-PE / PE-LD, yellow | 1.89 | 1.504 | 1.693 | 1.63 | 1.441 | 0.906 | 0.906 | show | 61000300073 | |
|
||||||||||
GPN 610 U 31 PCR-PE / PE-LD, yellow | 1.89 | 1.559 | 1.689 | 1.626 | 1.496 | 0.748 | 0.748 | show | 61000310073 | |
|
||||||||||
GPN 610 U 32 PCR-PE / PE-LD, yellow | 1.929 | 1.63 | 1.76 | 1.693 | 1.563 | 0.748 | 0.748 | show | 61000320073 | |
|
||||||||||
GPN 610 U 33 PCR-PE / PE-LD, yellow | 2.008 | 1.748 | 1.878 | 1.815 | 1.685 | 0.748 | 0.748 | show | 61000330073 | |
|
||||||||||
GPN 610 U 34 PCR-PE / PE-LD, yellow | 2.126 | 1.78 | 1.937 | 1.89 | 1.717 | 0.984 | 0.984 | show | 61000340073 | |
|
||||||||||
GPN 610 U 35 PCR-PE / PE-LD, yellow | 2.165 | 1.835 | 1.988 | 1.917 | 1.78 | 0.984 | 0.984 | show | 61000350073 | |
|
||||||||||
GPN 610 U 36 PCR-PE / PE-LD, yellow | 2.441 | 2.067 | 2.24 | 2.173 | 2 | 0.984 | 0.984 | show | 61000360073 | |
|
||||||||||
GPN 610 U 37 PCR-PE / PE-LD, yellow | 2.559 | 2.126 | 2.335 | 2.276 | 2.067 | 0.984 | 0.984 | show | 61000370073 | |
|
||||||||||
GPN 610 U 38 PCR-PE / PE-LD, yellow | 2.559 | 2.134 | 2.307 | 2.244 | 2.071 | 0.984 | 0.984 | show | 61000380073 | |
|
||||||||||
GPN 610 U 39 PCR-PE / PE-LD, yellow | 2.638 | 2.315 | 2.472 | 2.406 | 2.232 | 0.984 | 0.984 | show | 61000390073 | |
|
||||||||||
GPN 610 U 40 PCR-PE / PE-LD, yellow | 2.795 | 2.39 | 2.642 | 2.531 | 2.264 | 1.122 | 1.142 | show | 61000400073 | |
|
||||||||||
GPN 610 U 41 PCR-PE / PE-LD, yellow | 2.953 | 2.642 | 2.772 | 2.705 | 2.575 | 0.748 | 0.748 | show | 61000410073 | |
|
||||||||||
GPN 610 U 42 PCR-PE / PE-LD, yellow | 3.268 | 2.85 | 2.98 | 2.917 | 2.787 | 0.748 | 0.748 | show | 61000420073 | |
|
||||||||||
GPN 610 U 43 PCR-PE / PE-LD, yellow | 3.622 | 3.327 | 3.457 | 3.346 | 3.244 | 0.728 | 0.748 | show | 61000430073 | |
|
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Application guide
for metric threads
|
for metric threads
|
for metric threads
|
|||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Item
|
Outdoor application Fine thread
|
MF outdoor
|
/LocalizationKeys/productDetailsPage/kapsto/kapsto.column.8876
|
External application Standard thread
|
Outdoor application Pipe thread
|
Internal application fine threads
|
Internal application Pipe thread
|
||||||||||||
GPN 610 U 35 PCR-PE / PE-LD, yellow | G 1 1/2 | M 50 x 1 | M 50 x 1,5 | M 52 x 3 | M 56 | ||||||||||||||
GPN 610 U 15 PCR-PE / PE-LD, yellow | G 3/8 | M 20 x 1,5 | G 1/2 | ||||||||||||||||
GPN 610 U 41 PCR-PE / PE-LD, yellow | M 70 x 1 | M 70 x 1,5 | M 72 x 3 | ||||||||||||||||
GPN 610 U 34 PCR-PE / PE-LD, yellow | M 50 x 1,5 | M 50 x 2 | M 52 x 4 | ||||||||||||||||
GPN 610 U 43 PCR-PE / PE-LD, yellow | M 90 x 3 | ||||||||||||||||||
GPN 610 U 3 PCR-PE / PE-LD, yellow | M 7 | M 9,5 x 1 | M 10 x 1,25 | M 10 | G 1/8 | ||||||||||||||
GPN 610 U 4 PCR-PE / PE-LD, yellow | M 7,5 x 1M 8 x 1 | M 8 | G 1/16 | M 10,5 x 1 | M 11 | ||||||||||||||
GPN 610 U 5 PCR-PE / PE-LD, yellow | M 8,5 x 1 | M 11 x 1 | M 12 x 1,5 | M 12 | |||||||||||||||
GPN 610 U 6 PCR-PE / PE-LD, yellow | M 9 x 1 M 9,5 x 1 | M 9 | M 12 x 1 | M 12 x 1,25 | |||||||||||||||
GPN 610 U 7 PCR-PE / PE-LD, yellow | M 10 x 1 | M 10 | G 1/8 | M 12,5 x 1 | M 14 | G 1/4 | |||||||||||||
GPN 610 U 8 PCR-PE / PE-LD, yellow | M 10,5 x 1 | M 13,5 x 1 | M 14 x 1,5 | ||||||||||||||||
GPN 610 U 9 PCR-PE / PE-LD, yellow | M 12 x 1 | M 12 x 1,5 | M 12 | M 14 x 1 | M 15 x 1 | M 15 x 1,5 | ||||||||||||||
GPN 610 U 10 PCR-PE / PE-LD, yellow | M 12,5 x 1 | M 14,5 x 1 | M 16 | ||||||||||||||||
GPN 610 U 11 PCR-PE / PE-LD, yellow | M 13 x 1 | M 13 x 1,5 | G 1/4 | M 16 x 1 | M 16 x 1,5 | M 17 x 2 | |||||||||||||
GPN 610 U 12 PCR-PE / PE-LD, yellow | M 13,5 x 1 | M 17 x 1,5 | M 18 | G 3/8 | |||||||||||||||
GPN 610 U 13 PCR-PE / PE-LD, yellow | M 14 x 1 M 14,5 x 1 | M 14 x 1,5 | M 14 | M 17 x 1 | M 18 x 1,5 | ||||||||||||||
GPN 610 U 14 PCR-PE / PE-LD, yellow | M 16 x 1 | M 16 x 1,5 | M 16 | M 19 x 1,5 | M 20 x 2 | M 20 | |||||||||||||
GPN 610 U 16 PCR-PE / PE-LD, yellow | M 17 x 1 | M 17 x 1,5 | M 17 x 2 | M 20 x 1 | M 21 x 2 | M 22 | G 1/2 | ||||||||||||
GPN 610 U 17 PCR-PE / PE-LD, yellow | M 18 x 1 | M 18 x 1,5 | M 18 x 2 | M 18 | M 21 x 1 | M 22 x 2 | |||||||||||||
GPN 610 U 18 PCR-PE / PE-LD, yellow | M 19 x 1 | M 19 x 1,5 | M 19 x 2 | M 22 x 1,5 | M 24 | G 5/8 | |||||||||||||
GPN 610 U 19 PCR-PE / PE-LD, yellow | M 20 x 1 | M 20 x 1,5 | M 20 x 2 | M 20 | M 23 x 1 | M 24 x 2 | |||||||||||||
GPN 610 U 20 PCR-PE / PE-LD, yellow | M 21 x 1 | M 21 x 1,5 | M 21 x 2 | G 1/2 | M 24 x 1,5 | ||||||||||||||
GPN 610 U 21 PCR-PE / PE-LD, yellow | M 22 x 1 | M 22 x 1,5 | M 22 x 2 | M 22 | M 25 x 1,5 | M 26 x 2 | M 27 | ||||||||||||
GPN 610 U 22 PCR-PE / PE-LD, yellow | M 23 x 1 | M 23 x 1,5 | M 23 x 2 | G 5/8 | M 26 x 1 | M 27 x 2 | M 28 x 3 | G 3/4 | |||||||||||
GPN 610 U 23 PCR-PE / PE-LD, yellow | M 25 x 1 | M 25 x 1,5 | M 25 x 2 | M 27 x 1 | M 28 x 1,5 | M 30 | |||||||||||||
GPN 610 U 24 PCR-PE / PE-LD, yellow | M 26 x 1 | M 26 x 1,5 | M 26 x 2 | G 3/4 | M 29 x 1 | M 29 x 1,5 | M 30 x 2 | G 7/8 | |||||||||||
GPN 610 U 241 PCR-PE / PE-LD, yellow | M 27 x 1 | M 27 x 1,5 | M 27 x 2 | M 27 | M 30 x 1 | M 30 x 1,5 | M 32 x 3 | M 33 | |||||||||||
GPN 610 U 25 PCR-PE / PE-LD, yellow | M 28 x 1 | M 28 x 1,5 | M 28 x 2 | M 28 x 3 | M 31 x 1 | M 31 x 1,5 | M 32 x2 | M 33 | G 1 | ||||||||||
GPN 610 U 26 PCR-PE / PE-LD, yellow | M 30 x 1 | M 30 x 1,5 | M 30 x 2 | M 30 x 3 | M 30 | G 7/8 | M 32 x 1 | M 33 x 1,5 | M 36 | ||||||||||
GPN 610 U 27 PCR-PE / PE-LD, yellow | M 32 x 1 | M 32 x 1,5 | M 32 x 2 | M 32 x 3 | M 34 x 1 | M 35 x 1,5 | M 36 x 2 | ||||||||||||
GPN 610 U 28 PCR-PE / PE-LD, yellow | M 34 x 1 | M 34 x 1,5 | M 34 x 2 | M 34 x 3 | G 1 | M 36 x 1 | M 37 x 1,5 | M 39 x 3 | M 39 | G 1 1/8 | |||||||||
GPN 610 U 29 PCR-PE / PE-LD, yellow | M 37 x 1 | M 37 x 1,5 | M 37 x 2 | G 1 1/8 | M 40 x 1 | M 40 x 1,5 | M 42 x 3 | G 1 1/4 | |||||||||||
GPN 610 U 291 PCR-PE / PE-LD, yellow | M 38 x 1 | M 38 x 1,5 | M 38 x 2 | M 38 x 3 | M 42 x 2 | ||||||||||||||
GPN 610 U 30 PCR-PE / PE-LD, yellow | M 39 x 1 | M 39 x 1,5 | M 39 x 2 | M 39 x 3 | M 39 | M 42 x 1 | M 42 x 1,5 | M 45 x 4 | M 45 | ||||||||||
GPN 610 U 31 PCR-PE / PE-LD, yellow | M 40 x 1 | M 40 x 1,5 | M 40 x 2 | M 40 x 3 | M 40 x 4 | M 42 x 1 | M 45 x 3 | G 1 3/8 | |||||||||||
GPN 610 U 32 PCR-PE / PE-LD, yellow | M 42 x 1 | M 42 x 1,5 | M 42 x 2 | M 42 x 3 | M 42 x 4 | M 42 | G 1 1/4 | M 44 x 1 | M 45 x 1,5 | M 48 x 4 | |||||||||
GPN 610 U 33 PCR-PE / PE-LD, yellow | M 45 x 1 | M 45 x 1,5 | M 45 x 2 | M 45 x 3 | M 45 x 4 | M 45 | G 1 3/8 | M 48 x 1,5 | M 48 x 2 | M 50 x 3 | M 52 | ||||||||
GPN 610 U 36 PCR-PE / PE-LD, yellow | M 52 x 1 | M 52 x 1,5 | M 52 x 2 | M 52 x 3 | M 52 x 4 | M 52 | G 1 3/4 | M 56 x 1 | M 56 x 1,5 | M 58 x 3 | M60 | ||||||||
GPN 610 U 37 PCR-PE / PE-LD, yellow | M 55 x 1 | M 55 x 1,5 | M 55 x 2 | M 55 x 3 | M 55 x 4 | M 58 x 1 | M 58 x 1,5 | M 60 x 3 | M 64 | G 2 | |||||||||
GPN 610 U 38 PCR-PE / PE-LD, yellow | M 55 x 1 | M 55 x 1,5 | M 55 x 2 | M 55 x 3 | M 55 x 4 | M 58 x 1 | M 58 x 1,5 | M 60 x 3 | M 64 | G 2 | |||||||||
GPN 610 U 39 PCR-PE / PE-LD, yellow | M 60 x 1 | M 60 x 1,5 | M 60 x 2 | M 60 x 3 | M 60 x 4 | G 2 | M 62 x 1 | M 62 x 1,5 | M 64 x 3 | M 68 | |||||||||
GPN 610 U 40 PCR-PE / PE-LD, yellow | M 62 x 1 | M 62 x 1,5 | M 62 x 2 | M 62 x 3 | M 62 x 4 | M 62 | M 65 x 1 | M 65 x 1,5 | M 68 x 4 | ||||||||||
GPN 610 U 42 PCR-PE / PE-LD, yellow | M 72 x 1 | M 72 x 1, 5 | M 72 x 2 | M 72 x 3 | M 72 x 4 | M 75 x 1 | M 76 x 1,5 | ||||||||||||
GPN 610 U 1 PCR-PE / PE-LD, yellow | M 4 x 0,5 | M 4 | M 6 x 0,5 | M 6 x 0,75 | M 6 | ||||||||||||||
GPN 610 U 2 PCR-PE / PE-LD, yellow | M 5 x 0,5 | M 5 | M 8 x 1 | M 8 |
This application table represents guide values. We will be happy to send you free trial samples. For bolts, pins and tube ends please select according to the functional dimensions D and E.
This application table is a guide. We will be happy to send you free test samples. For openings and bores without threads, please select according to functional dimensions B and C.
Quality advantages
More versatile.
Cleaner.
Better.
More resource-saving.
Mix of post-consumer recyclate and virgin material
