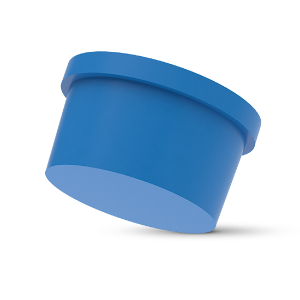

Tapered Plugs - GPN 500

The GPN 500 tapered plugs offer small internal threads and bore holes protection against dirt and damage. The solid design is suitable for high demands. The conical shape of the tapered plugs enables tolerances to be accommodated.


  • Tapered plugs for internal protection
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

Colour
recycling blue
Material
PCR-PE
mm inch
Applicable for
Dimensions
Item
Thread type
A
B
C
H
CAD
Order no.
GPN 500 B 31 PCR-PE, recycling blue M 4 0.217 0.126 0.138 0.118 5000031RB61
GPN 500 B 41 PCR-PE, recycling blue M 5 0.295 0.161 0.177 0.118 5000041RB61
GPN 500 B 43 PCR-PE, recycling blue M 5 x 0,5 0.315 0.173 0.185 0.118 5000043RB61
GPN 500 B 47 PCR-PE, recycling blue M 6 0.315 0.193 0.213 0.157 5000047RB61
GPN 500 B 53 PCR-PE, recycling blue M 6 x 0,5 0.335 0.213 0.22 0.118 5000053RB61
GPN 500 B 58 PCR-PE, recycling blue M 7 0.354 0.228 0.24 0.157 5000058RB61
GPN 500 B 64 PCR-PE, recycling blue M 8 0.354 0.252 0.268 0.157 5000064RB61
GPN 500 B 68 PCR-PE, recycling blue M 8 x 1 0.394 0.268 0.283 0.157 5000068RB61
GPN 500 B 78 PCR-PE, recycling blue M 9 x 1 0.433 0.307 0.323 0.157 5000078RB61

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Quality advantages

More robust.
More robust.
Solid design for higher demands.
More versatile.
More versatile.
Tapered plug to accommodate tolerances.
Better.
Better.
For closing internal threads and bore holes.
More resource-saving.
More resource-saving.
The plastic used consists of 100 % recycled material.
