Screw cap - GPN 801 made of 100% post-consumer recycled material (PCR-PE)

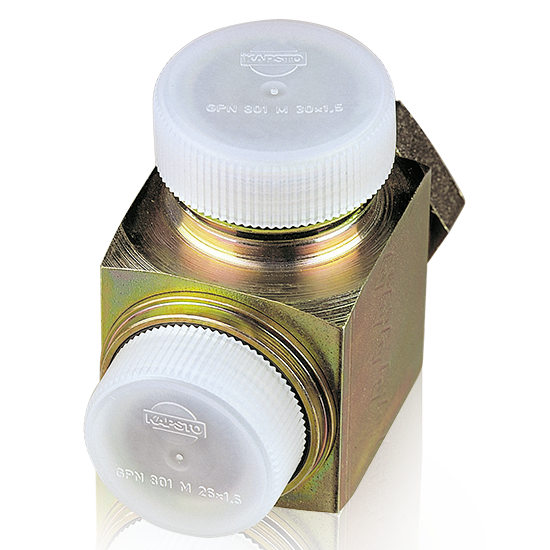

Application picture, Application, Website
Drawing screw cap - GPN 801
Screw Caps - GPN 801
The GPN 801 screw caps are suitable for external threads. Easy-to-grip external ribs for easy fitting by hand. The flat design enables fast fitting and removal.
- Screw caps for external protection
- Two sustainable variants made from post-consumer recyclate available
100% Post-Consumer Recyclate
Recycling blend
Virgin material
Dimensions
|
|
Applicable for
|
Dimensions
|
|
|||
|---|---|---|---|---|---|---|
|
Item
|
L
|
A
|
G
|
CAD
|
Order no.
|
|
| GPN 801 M 12 x 1,5 PCR-PE, blue | M 12 x 1,5 | 0.591 | 0.276 | show | 8011215RB61 | |
|
|
||||||
| GPN 801 M 14 x 1,5 PCR-PE, blue | M 14 x 1,5 | 0.669 | 0.276 | show | 8011415RB61 | |
|
|
||||||
| GPN 801 M 16 x 1 PCR-PE, blue | M 16 x 1 | 0.748 | 0.197 | show | 8011610RB61 | |
|
|
||||||
| GPN 801 M 16 x 1,5 PCR-PE, blue | M 16 x 1,5 | 0.787 | 0.276 | show | 8011615RB61 | |
|
|
||||||
| GPN 801 M 18 x 1,5 PCR-PE, blue | M 18 x 1,5 | 0.827 | 0.354 | show | 8011815RB61 | |
|
|
||||||
| GPN 801 M 22 x 1,5 PCR-PE, blue | M 22 x 1,5 | 0.984 | 0.354 | show | 8012215RB61 | |
|
|
||||||
| GPN 801 M 26 x 1,5 PCR-PE, blue | M 26 x 1,5 | 1.142 | 0.394 | show | 8012615RB61 | |
|
|
||||||
| GPN 801 M 30 x 1,5 PCR-PE, blue | M 30 x 1,5 | 1.299 | 0.394 | show | 8013015RB61 | |
|
|
||||||
| GPN 801 M 30 x 2 PCR-PE, blue | M 30 x 2 | 1.299 | 0.394 | show | 8013020RB61 | |
|
|
||||||
| GPN 801 M 36 x 2 PCR-PE, blue | M 36 x 2 | 1.535 | 0.394 | show | 8013620RB61 | |
|
|
||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Zeitsparender.
Flat design for faster installation.
Besser.
Suitable for outer threads. Easy-to-grip external rib for easy mounting and removal by hand.
Ressourcenschonender.
The plastic used consists of 100 % recycled material.
