Protective Caps with Fins - GPN 207

The GPN 207 protective caps are suitable for bolts, pins and external threads as well as SAE connectors. Internal fins are suitable for use with different diameters. Spacing between the fins enables ventilation.

Protective caps for external protection
Production in accordance with ISO 16232 in a specially designed cleanroom possible
Two sustainable variants made from post-consumer recyclate available

more advantages

100% Post-Consumer Recyclate

Recycling blend

Virgin material

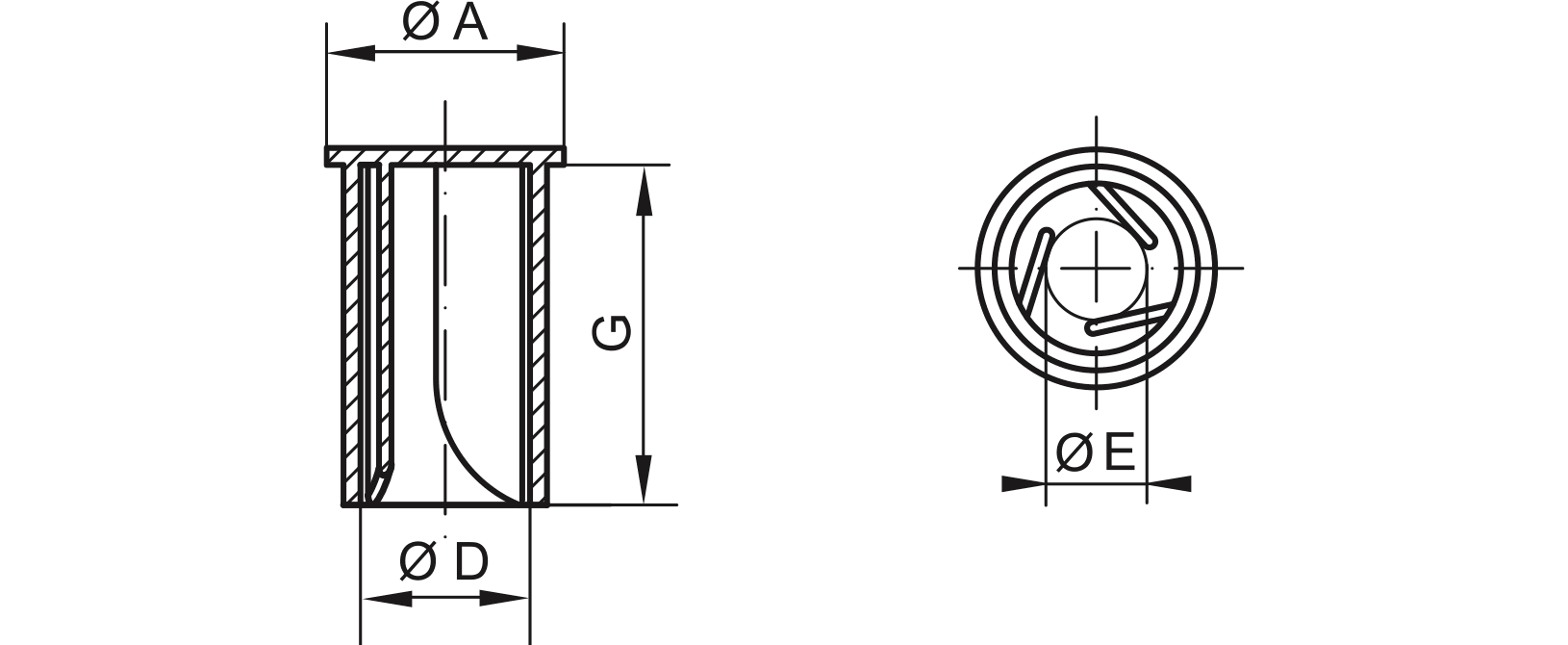

Dimensions

Colour

blue

Material

PCR-PE

mm inch

View prices and conditions directly online here and order even more easily.

	Applicable for			Dimensions
Item	SAE-Plug NW	E min	E max	A	D	G	CAD	Order no.
GPN 207 FL 67 PCR-PE, blue	6,35 (1/4'')	0.205 5,2	0.264 6,7	0.472 12	0.315 8	0.984 25	show	2070067RB61

GPN 207 FL 73 PCR-PE, blue		0.228 5,8	0.287 7,3	0.512 13	0.354 9	0.984 25	show	2070073RB61

GPN 207 FL 77 PCR-PE, blue	7,89 (5/16'')	0.256 6,5	0.303 7,7	0.551 14	0.394 10	1.26 32	show	2070077RB61

GPN 207 FL 80 PCR-PE, blue	7,89 (5/16'')	0.256 6,5	0.315 8	0.551 14	0.394 10	0.787 20	show	2070080RB61

GPN 207 FL 123 PCR-PE, blue	9,49 (3/8'') \| 9,89 (7/16'')	0.366 9,3	0.484 12,3	0.728 18,5	0.563 14,3	0.906 23	show	2070123RB61

GPN 207 FL 150 PCR-PE, blue	12,70 (1/2'')	0.465 11,8	0.591 15	0.827 21	0.681 17,3	0.984 25	show	2070150RB61

GPN 207 FL 107 PCR-PE, blue		0.307 7,8	0.421 10,7	0.669 17	0.531 13,5	0.984 25	show	2070107RB61

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Application guide

mm inch


Item	Pipe thread	metric male thread
GPN 207 FL 67 PCR-PE, blue
GPN 207 FL 73 PCR-PE, blue		M 6 M 6
GPN 207 FL 77 PCR-PE, blue
GPN 207 FL 80 PCR-PE, blue		M 8 M 8
GPN 207 FL 123 PCR-PE, blue	G 1/8 G 1/8	M 10 M 10
GPN 207 FL 150 PCR-PE, blue	G 1/4 G 1/4	M 12 \| M 14 M 12 \| M 14
GPN 207 FL 107 PCR-PE, blue		M 8 \| M 10 M 8 \| M 10

This application table represents guideline values. We would be pleased to send you free samples.

Quality advantages

More versatile.

Suitable for different diameters due to flexible internal fins.

Cleaner.

Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.

Better.

Internal fins providing venting and pressure equalisation. Suitable for studs, pins, external threads and the mating surfaces of SAE quick-connect plugs.
