Protective cap - GPN 690 as recycled blend (PCR-PE/PE-LD)

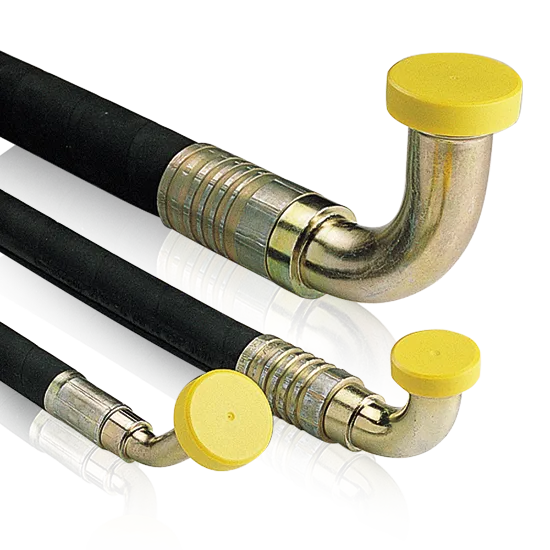

Application protective cap - GPN 690
Drawing protective cap - GPN 690

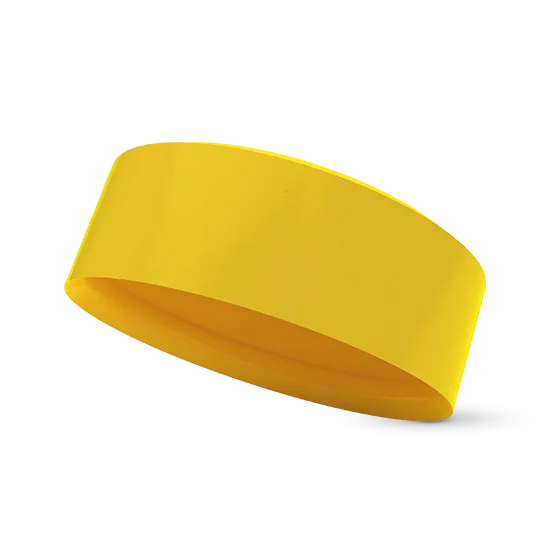

Protective Caps - GPN 690
The GPN 690 protective caps protect SAE flange collars, pipe ends and hose fittings from damage and dirt. The circumferential rim ensures firm fit on the application and easy handling.
- Protective caps for external protection
100% Post-Consumer Recyclate
Recycling blend
Virgin material
Dimensions
Colour
yellow
Material
PCR-PE / PE-LD
mm
inch
|
|
Dimensions
|
|
||||||
|---|---|---|---|---|---|---|---|---|
|
Item
|
NW mm
|
NW Zoll
|
D
|
E
|
G
|
CAD
|
Order no.
|
|
| GPN 690 / 3001 PCR-PE / PE-LD, yellow | 12 | 1/2 | 1.189 | 1.157 | 0.272 | show | 69030010073 | |
|
|
||||||||
| GPN 690 / 3002 PCR-PE / PE-LD, yellow | 20 | 3/4 | 1.5 | 1.469 | 0.272 | show | 69030020073 | |
|
|
||||||||
| GPN 690 / 3003 PCR-PE / PE-LD, yellow | 25 | 1 | 1.748 | 1.717 | 0.319 | show | 69030030073 | |
|
|
||||||||
| GPN 690 / 3004 PCR-PE / PE-LD, yellow | 32 | 1 1/4 | 2 | 1.969 | 0.319 | show | 69030040073 | |
|
|
||||||||
| GPN 690 / 3005 PCR-PE / PE-LD, yellow | 40 | 1 1/2 | 2.374 | 2.343 | 0.319 | show | 69030050073 | |
|
|
||||||||
| GPN 690 / 3006 PCR-PE / PE-LD, yellow | 50 | 2 | 2.811 | 2.78 | 0.382 | show | 69030060073 | |
|
|
||||||||
| GPN 690 / 6001 PCR-PE / PE-LD, yellow | 12 | 1/2 | 1.248 | 1.217 | 0.311 | show | 69060010073 | |
|
|
||||||||
| GPN 690 / 6002 PCR-PE / PE-LD, yellow | 20 | 3/4 | 1.626 | 1.594 | 0.35 | show | 69060020073 | |
|
|
||||||||
| GPN 690 / 6003 PCR-PE / PE-LD, yellow | 25 | 1 | 1.866 | 1.827 | 0.374 | show | 69060030073 | |
|
|
||||||||
| GPN 690 / 6004 PCR-PE / PE-LD, yellow | 32 | 1 1/4 | 2.126 | 2.094 | 0.409 | show | 69060040073 | |
|
|
||||||||
| GPN 690 / 6005 PCR-PE / PE-LD, yellow | 40 | 1 1/2 | 2.5 | 2.461 | 0.5 | show | 69060050073 | |
|
|
||||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Application guide
mm
inch
|
|
||||
|---|---|---|---|---|
|
Item
|
Pressure rating 3000 PSI (210 bar) nominal size inch
|
/LocalizationKeys/productDetailsPage/kapsto/kapsto.column.9367
|
Pressure rating 6000 PSI (420 bar) Nominal size inch
|
|
| GPN 690 / 3001 PCR-PE / PE-LD, yellow | 12 | |||
| GPN 690 / 3002 PCR-PE / PE-LD, yellow | 20 | |||
| GPN 690 / 3003 PCR-PE / PE-LD, yellow | 25 | |||
| GPN 690 / 3004 PCR-PE / PE-LD, yellow | 32 | |||
| GPN 690 / 3005 PCR-PE / PE-LD, yellow | 40 | |||
| GPN 690 / 3006 PCR-PE / PE-LD, yellow | 50 | |||
| GPN 690 / 6001 PCR-PE / PE-LD, yellow | 12 | 1/2 | ||
| GPN 690 / 6002 PCR-PE / PE-LD, yellow | 20 | 3/4 | ||
| GPN 690 / 6003 PCR-PE / PE-LD, yellow | 25 | 1 | ||
| GPN 690 / 6004 PCR-PE / PE-LD, yellow | 32 | 1 1/4 | ||
| GPN 690 / 6005 PCR-PE / PE-LD, yellow | 40 | 1 1/2 | ||
This application table represents guideline values. We would be pleased to send you free samples.
The versions shown opposite have been specially developed to cover SAE flanges. Pressure ratings: 3000 PSI and 6000 PSI.
Quality advantages
Better fit.
Protection for SAE flange collars.
Better.
Also suitable for pipe ends and hose-fittings. A circumferential rim ensures firm fit and easy handling.
Alternative standard series
