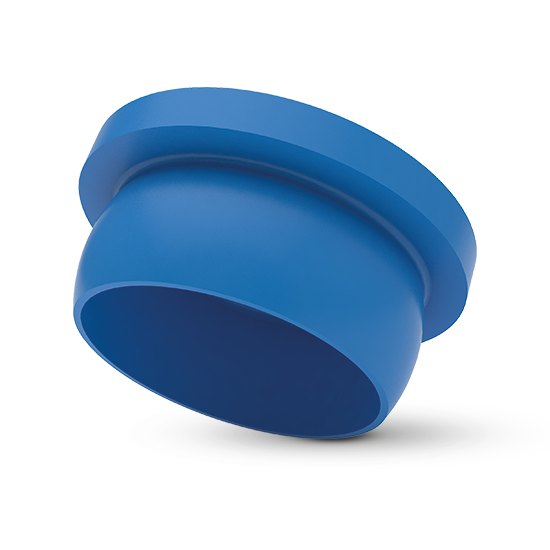

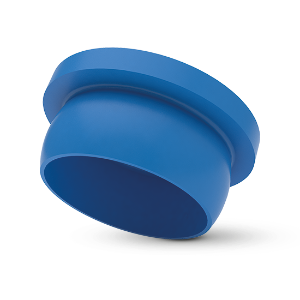

Closure Plugs - GPN 300 F

The GPN 300 F sealing plugs can be used to protect internal threads and bore holes, and ensure a firm fit thanks to their crowned shank. The flat head saves space.


  • Sealing plugs for internal protection
  • Production in accordance with ISO 16232 in a specially designed cleanroom possible
  • Two sustainable variants made from post-consumer recyclate available
more advantages
100% Post-Consumer Recyclate 100% Post-Consumer Recyclate Recycling blend Recycling blend Virgin material Virgin material
Dimensions Application guide Quality advantages Information material

Dimensions

Colour
recycling blue
Material
PCR-PE
mm inch
Dimensions
Order no.
Item
A
C
H
M
CAD
Order no.
GPN 300 F 1 PCR-PE, recycling blue 0.197 0.122 0.079 0.118 3000001RB61
GPN 300 F 2 PCR-PE, recycling blue 0.551 0.283 0.236 0.315 3000002RB61
GPN 300 F 3 PCR-PE, recycling blue 0.551 0.331 0.236 0.315 3000003RB61
GPN 300 F 4 PCR-PE, recycling blue 0.551 0.362 0.177 0.256 3000004RB61
GPN 300 F 5 PCR-PE, recycling blue 0.551 0.421 0.217 0.295 3000005RB61
GPN 300 F 7 PCR-PE, recycling blue 0.63 0.461 0.276 0.354 3000007RB61
GPN 300 F 9 PCR-PE, recycling blue 0.63 0.484 0.276 0.354 3000009RB61
GPN 300 F 10 PCR-PE, recycling blue 0.787 0.539 0.315 0.394 3000010RB61
GPN 300 F 011 PCR-PE, recycling blue 0.276 0.185 0.071 0.102 3000110RB61
GPN 300 F 11 PCR-PE, recycling blue 0.787 0.575 0.217 0.295 3000011RB61
GPN 300 F 012 PCR-PE, recycling blue 0.354 0.26 0.157 0.205 3000120RB61
GPN 300 F 12 PCR-PE, recycling blue 0.787 0.614 0.315 0.394 3000012RB61
GPN 300 F 14 PCR-PE, recycling blue 0.866 0.657 0.217 0.295 3000014RB61
GPN 300 F 15 PCR-PE, recycling blue 0.866 0.673 0.315 0.413 3000015RB61
GPN 300 F 17 PCR-PE, recycling blue 0.984 0.724 0.315 0.425 3000017RB61
GPN 300 F 18 PCR-PE, recycling blue 0.984 0.76 0.315 0.425 3000018RB61
GPN 300 F 19 PCR-PE, recycling blue 0.984 0.815 0.315 0.413 3000019RB61
GPN 300 F 21 PCR-PE, recycling blue 1.102 0.882 0.354 0.472 3000021RB61
GPN 300 F 22 PCR-PE, recycling blue 1.102 0.945 0.354 0.472 3000022RB61
GPN 300 F 23 PCR-PE, recycling blue 1.102 0.969 0.354 0.472 3000023RB61
GPN 300 F 24 PCR-PE, recycling blue 1.417 1.142 0.461 0.579 3000024RB61
GPN 300 F 25 PCR-PE, recycling blue 1.417 1.26 0.394 0.492 3000025RB61
GPN 300 F 26 PCR-PE, recycling blue 1.417 1.319 0.472 0.551 3000026RB61
GPN 300 F 27 PCR-PE, recycling blue 1.654 1.37 0.591 0.709 3000027RB61
GPN 300 F 28 PCR-PE, recycling blue 1.654 1.437 0.591 0.709 3000028RB61
GPN 300 F 30 PCR-PE, recycling blue 1.654 1.512 0.394 0.492 3000030RB61
GPN 300 F 031 PCR-PE, recycling blue 0.551 0.339 0.177 0.256 3000310RB61
GPN 300 F 31 PCR-PE, recycling blue 1.654 1.575 0.591 0.709 3000031RB61
GPN 300 F 032 PCR-PE, recycling blue 0.512 0.346 0.295 0.374 3000320RB61
GPN 300 F 32 PCR-PE, recycling blue 2.165 1.811 0.709 0.827 3000032RB61
GPN 300 F 33 PCR-PE, recycling blue 2.165 1.909 0.472 0.591 3000033RB61
GPN 300 F 35 PCR-PE, recycling blue 2.165 2.028 0.709 0.827 3000035RB61
GPN 300 F 37 PCR-PE, recycling blue 2.48 2.165 0.709 0.827 3000037RB61
GPN 300 F 38 PCR-PE, recycling blue 2.48 2.197 0.709 0.827 3000038RB61
GPN 300 F 40 PCR-PE, recycling blue 2.48 2.283 0.709 0.827 3000040RB61
GPN 300 F 041 PCR-PE, recycling blue 0.551 0.37 0.177 0.256 3000041RB61
GPN 300 F 41 PCR-PE, recycling blue 3.071 2.795 0.709 0.866 3000410RB61
GPN 300 F 042 PCR-PE, recycling blue 0.512 0.406 0.217 0.295 3000420RB61
GPN 300 F 42 PCR-PE, recycling blue 3.74 3.386 0.709 0.76 3000042RB61
GPN 300 F 44 PCR-PE, recycling blue 4.882 4.035 0.709 0.846 3000044RB61
GPN 300 F 47 PCR-PE, recycling blue 5.984 4.862 0.709 0.846 3000047RB61
GPN 300 F 091 PCR-PE, recycling blue 0.63 0.512 0.276 0.354 3000091RB61
GPN 300 F 111 PCR-PE, recycling blue 0.787 0.591 0.315 0.394 3000111RB61
GPN 300 F 112 PCR-PE, recycling blue 0.787 0.591 0.217 0.295 3000112RB61
GPN 300 F 141 PCR-PE, recycling blue 0.866 0.65 0.217 0.295 3000141RB61
GPN 300 F 142 PCR-PE, recycling blue 0.787 0.65 0.217 0.295 3000142RB61
GPN 300 F 181 PCR-PE, recycling blue 0.984 0.843 0.295 0.374 3000181RB61
GPN 300 F 182 PCR-PE, recycling blue 0.984 0.854 0.315 0.413 3000182RB61
GPN 300 F 183 PCR-PE, recycling blue 0.984 0.772 0.315 0.413 3000183RB61
GPN 300 F 184 PCR-PE, recycling blue 0.984 0.835 0.315 0.394 3000184RB61
GPN 300 F 211 PCR-PE, recycling blue 1.102 0.929 0.354 0.472 3000211RB61
GPN 300 F 231 PCR-PE, recycling blue 1.063 0.965 0.335 0.433 3000231RB61
GPN 300 F 232 PCR-PE, recycling blue 1.102 1.004 0.295 0.374 3000232RB61
GPN 300 F 233 PCR-PE, recycling blue 1.102 1.043 0.354 0.472 3000233RB61
GPN 300 F 241 PCR-PE, recycling blue 1.417 1.201 0.472 0.591 3000241RB61
GPN 300 F 242 PCR-PE, recycling blue 1.417 1.22 0.472 0.591 3000242RB61
GPN 300 F 271 PCR-PE, recycling blue 1.654 1.398 0.591 0.709 3000271RB61
GPN 300 F 301 PCR-PE, recycling blue 1.654 1.535 0.591 0.709 3000301RB61
GPN 300 F 311 PCR-PE, recycling blue 1.772 1.602 0.591 0.709 3000311RB61
GPN 300 F 312 PCR-PE, recycling blue 1.89 1.665 0.591 0.709 3000312RB61
GPN 300 F 0315 PCR-PE, recycling blue 0.709 0.339 0.236 0.315 3000315RB61
GPN 300 F 401 PCR-PE, recycling blue 2.795 2.598 0.709 0.846 3000401RB61
GPN 300 F 402 PCR-PE, recycling blue 2.48 2.323 0.709 0.839 3000402RB61
GPN 300 F 411 PCR-PE, recycling blue 3.386 2.984 0.748 0.866 3000411RB61

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

free samples Samples non-binding offer offer
Recommend
SCROLL

Application guide

mm inch
for metric threads
Item
fine thread
Standard thread
Pipe thread
GPN 300 F 1 PCR-PE, recycling blue M 3,5
GPN 300 F 2 PCR-PE, recycling blue M 8 x 1 M 8 1/16
GPN 300 F 3 PCR-PE, recycling blue M 9 x 1
GPN 300 F 4 PCR-PE, recycling blue M 10 x 1 1/8
GPN 300 F 5 PCR-PE, recycling blue M 12 x 1,5 M 12
GPN 300 F 7 PCR-PE, recycling blue M 12 x 1 M 13 x 1,5 1/4
GPN 300 F 9 PCR-PE, recycling blue M 13 x 1 M 14 1/4
GPN 300 F 10 PCR-PE, recycling blue M 15 x 1,5
GPN 300 F 011 PCR-PE, recycling blue M 5 x 0,5
GPN 300 F 11 PCR-PE, recycling blue M 15 x 1 M 16
GPN 300 F 012 PCR-PE, recycling blue M 7,5 x 1
GPN 300 F 12 PCR-PE, recycling blue M 16 x 1 M 18 3/8
GPN 300 F 14 PCR-PE, recycling blue M 18 x 1,5
GPN 300 F 15 PCR-PE, recycling blue M 18 x 1,5
GPN 300 F 17 PCR-PE, recycling blue M 19 x 1 M 20 x 2
GPN 300 F 18 PCR-PE, recycling blue M 20 x 1 M 21 x 2 1/2
GPN 300 F 19 PCR-PE, recycling blue M 22 x 1,5
GPN 300 F 21 PCR-PE, recycling blue M 23 x 1 M 24 x 2
GPN 300 F 22 PCR-PE, recycling blue M 25 x 1,5 M 27
GPN 300 F 23 PCR-PE, recycling blue M 25 x 1 M 26 x 1,5 M 26 x 2 3/4
GPN 300 F 24 PCR-PE, recycling blue M 30 x 1,5
GPN 300 F 25 PCR-PE, recycling blue M 33 x 1,5 M 36
GPN 300 F 26 PCR-PE, recycling blue M 34 x 1 M 35 x 2 M 36 x 3
GPN 300 F 27 PCR-PE, recycling blue M 36 x 1,5
GPN 300 F 28 PCR-PE, recycling blue M 37 x 1 M 38 x 2 M 39 x 3
GPN 300 F 30 PCR-PE, recycling blue M 39 x 1 M 40 x 2
GPN 300 F 031 PCR-PE, recycling blue M 10
GPN 300 F 31 PCR-PE, recycling blue
GPN 300 F 032 PCR-PE, recycling blue M 9,5 x 1 M 10 1/8
GPN 300 F 32 PCR-PE, recycling blue M 50 x 4
GPN 300 F 33 PCR-PE, recycling blue M 50 x 2
GPN 300 F 35 PCR-PE, recycling blue M 52 x 1 1 3/4
GPN 300 F 37 PCR-PE, recycling blue M 56 x 1,5
GPN 300 F 38 PCR-PE, recycling blue M 56 x 1
GPN 300 F 40 PCR-PE, recycling blue M 62 x 4 M 64
GPN 300 F 041 PCR-PE, recycling blue M 10 x 1
GPN 300 F 41 PCR-PE, recycling blue M 72 x 1,5 M 75 x 4
GPN 300 F 042 PCR-PE, recycling blue M 11 x 1 M 12
GPN 300 F 42 PCR-PE, recycling blue M 90 x 4
GPN 300 F 44 PCR-PE, recycling blue M 105 x 3
GPN 300 F 47 PCR-PE, recycling blue M 125 x 2
GPN 300 F 091 PCR-PE, recycling blue M 13,5 x 1 M 14 x 1,5
GPN 300 F 111 PCR-PE, recycling blue M 16 x 1,5
GPN 300 F 112 PCR-PE, recycling blue M 16 x 1,5
GPN 300 F 141 PCR-PE, recycling blue M 17 x 1 M 18 x 1,5
GPN 300 F 142 PCR-PE, recycling blue M 17 x 1 M 18 x 1,5
GPN 300 F 181 PCR-PE, recycling blue M 22 x 1 M 23 x 2 M 24
GPN 300 F 182 PCR-PE, recycling blue M 22 x 1
GPN 300 F 183 PCR-PE, recycling blue M 21 x 1,5 M 22
GPN 300 F 184 PCR-PE, recycling blue M 22 x 1 M 24 5/8
GPN 300 F 211 PCR-PE, recycling blue M 24 x 1 M 25 x 1,5 M 25 x 2
GPN 300 F 231 PCR-PE, recycling blue M 25 x 1 M 26 x 2 M 25
GPN 300 F 232 PCR-PE, recycling blue M 26 x 1 M 27 x 2
GPN 300 F 233 PCR-PE, recycling blue M 27 x 1 M 28 x 2 M 30
GPN 300 F 241 PCR-PE, recycling blue M 31 x 1 M 32 x 2 1
GPN 300 F 242 PCR-PE, recycling blue M 32 x 1,5 1
GPN 300 F 271 PCR-PE, recycling blue M 36 x 1 M 37 x 2 M 38 x 3 M 39 1 1/8
GPN 300 F 301 PCR-PE, recycling blue M 40 x 1,5 M 42 x 3
GPN 300 F 311 PCR-PE, recycling blue M 42 x 1,5 M 42 x 2 M 45
GPN 300 F 312 PCR-PE, recycling blue M 45 x 3
GPN 300 F 0315 PCR-PE, recycling blue M 10
GPN 300 F 401 PCR-PE, recycling blue M 70 x 4
GPN 300 F 402 PCR-PE, recycling blue M 60 x 1,5
GPN 300 F 411 PCR-PE, recycling blue
free samples Samples non-binding offer offer
Recommend
SCROLL

Quality advantages

More versatile.
More versatile.
Multi functional use for internal threads and bore holes.
Cleaner.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Greater variety.
Greater variety.
The GPN 300 is available ex stock in black and also in natural.
Better.
Better.
Flat-headed design. Firm fit due to crowned shank.
More resource-saving.
More resource-saving.
The plastic used consists of 100 % recycled material.
