VDA Sealing Plugs - GPN 247

The VDA sealing plugs GPN 247 are suitable for protecting the
connection area of VDA quick-release couplings. The clamping on the upper edge offers a special seal and is done gently and securely on the inner sealing rings of the connector. The plastic used consists of post-consumer recyclate.


  • VDA sealing plugs for internal protection
  • Production according to ISO 16232 possible in the specially equipped clean room
  • The recyclate used has been awarded the Blue Angel
more advantages

Dimensions

Colour
recycling blau
Material
PCR-PE
Materials and Applications
mm inch
Applicable for

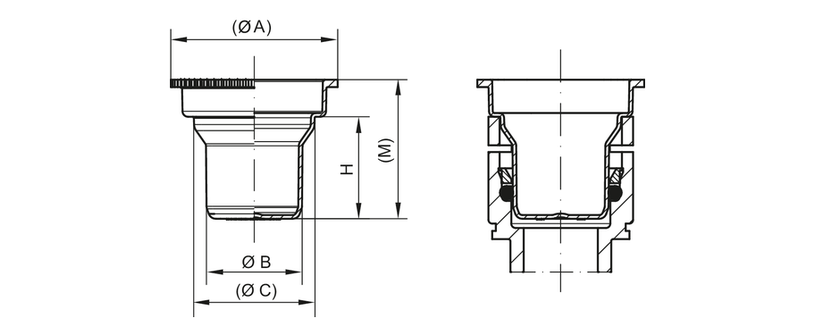

Dimensions
Item
VDA coupling NW
A
B
C
H
M
CAD
Order no.
GPN 247 NW 6 PCR-PE, recycling blau 6 0.984 0.39 0.63 0.839 1.161 24700060000
GPN 247 NW 8 PCR-PE, recycling blau 8 1.142 0.472 0.709 0.894 1.213 24700080000
GPN 247 NW 12 PCR-PE, recycling blau 12 1.299 0.622 0.831 0.898 1.252 24700120000
GPN 247 NW 16 PCR-PE, recycling blau 16 1.614 0.862 1.106 1.075 1.469 24700160000
GPN 247 NW 20 PCR-PE, recycling blau 20 1.772 1.02 1.28 1.075 1.476 24700200000
GPN 247 NW 26 PCR-PE, recycling blau 26 2.024 1.26 1.539 1.15 1.555 24700260000

Dimensions in mm

*The article consists of 98 % PCR-PE (Post Consumer Recyclate) and 2 % colour based on a PIR carrier (Post Industrial Recyclate).

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

For these articles, color deviations as well as black dots, which cannot be completely avoided due to production technology, are permissible. We recommend that functional tests be carried out before series production.
