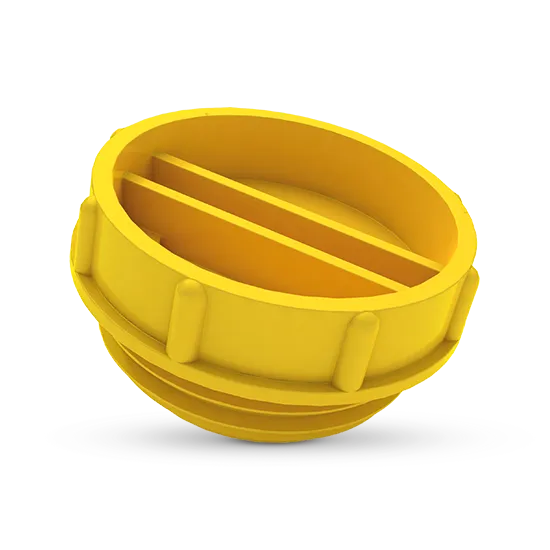

Screw Plugs - GPN 703

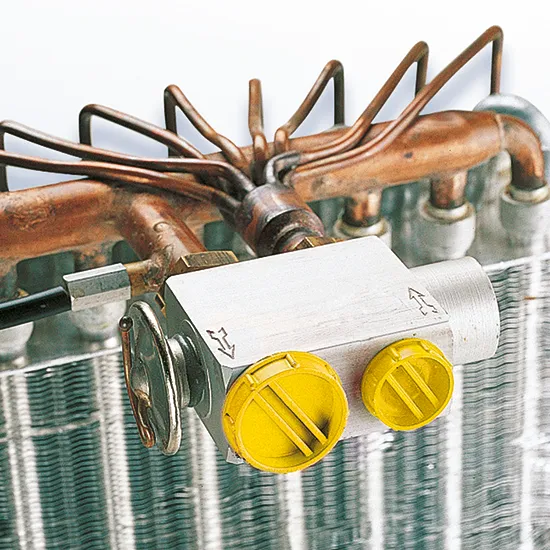

The GPN 703 screw plugs are suitable for many different internal threads and have just 2 ½ thread pitches for faster fitting.


  • Screw plugs for internal protection
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

Drawing screw plug - GPN 700
Colour
yellow
Material
PCR-PE / PE-LD
Technical data sheet
View prices and conditions directly online here and order even more easily.
Applicable for
Dimensions
Item
K
A
H
M
CAD
Order no.
GPN 703 M 10 x 1 PCR-PE / PE-LD, yellow M 10 x 1 14,5 4 9 70310100073
GPN 703 M 12 x 1,5 PCR-PE / PE-LD, yellow M 12 x 1,5 17,5 6 11 70312150073
GPN 703 M 14 x 1,5 PCR-PE / PE-LD, yellow M 14 x 1,5 19 6 11 70314150073
GPN 703 M 16 x 1,5 PCR-PE / PE-LD, yellow M 16 x 1,5 22,5 6,5 12,5 70316150073
GPN 703 M 18 x 1,5 PCR-PE / PE-LD, yellow M 18 x 1,5 24 7 16 70318150073
GPN 703 M 20 x 1,5 PCR-PE / PE-LD, yellow M 20 x 1,5 26 7 13 70320150073
GPN 703 M 22 x 1,5 PCR-PE / PE-LD, yellow M 22 x 1,5 27,5 7 13 70322150073
GPN 703 M 24 x 1,5 PCR-PE / PE-LD, yellow M 24 x 1,5 29,5 7 18 70324150073
GPN 703 M 26 x 1,5 PCR-PE / PE-LD, yellow M 26 x 1,5 32 14,5 22,5 70326150073
GPN 703 M 28 x 1,5 PCR-PE / PE-LD, yellow M 28 x 1,5 34 8 19 70328150073

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.

Quality advantages

<p><strong>Saves time.</strong></p>

Saves time.

Screw-stopper with only 2 ½ threads for faster installation.
<p><strong>More resource-saving.</strong></p>

More resource-saving.

Blend of post-consumer recyclate and virgin material
