HV Connector Caps - GPN 380 Type A

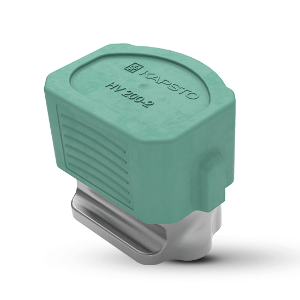

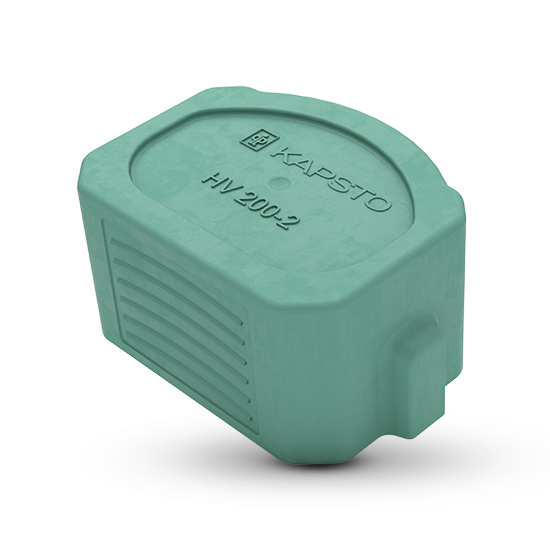

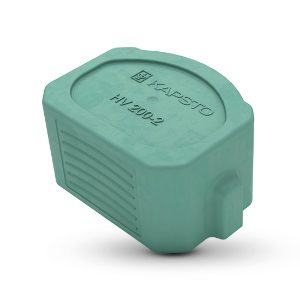

The GPN 380 Type A high-voltage connector caps are suitable for use in parts and components for hybrid and electric vehicles. They protect Rosenberger connectors (HVR 200), e.g. from the battery to the inverter and electric motor, against corrosion and mechanical damage and provide protection against splashing water in accordance with protection class IPX4. The connector cap has non-slip gripping surfaces that allow fast removal and impresses with a functional registered design. The plastic used consists of post-consumer recycled material.


  • HV connector caps for external protection
  • Suitable for HVR 200 HV contact connectors
  • Production in accordance with ISO 16232 in a specially designed cleanroom possible
  • Blue Angel-certified recycled material
more advantages

Dimensions

Drawing HV-Protection - GPN 380 Form A
Material
PCR-PP
Technical data sheet
View prices and conditions directly online here and order even more easily.
Dimensions
Item
A
F
H
I
J
M
CAD
Order no.
New GPN 380 HV 200-2 PCR-PP 59,4 41,1 27 45,8 32,3 28 38005010000

Dimensions in mm.

Information on materials, colours, designs and use of our products can be found on the website and in Chapter 4 Materials and use.

Application guide

Item
Contact connections
New GPN 380 HV 200-2 PCR-PP HVR
  • 2 + 2

The article consists of 98 % PCR-PP and 2 % colour based on a PIR carrier. The plastic used consists of 100 % PCR.

For these articles, colour deviations and black dots that cannot be completely avoided in production are permissible. We recommend carrying out functional tests before series production.

Quality advantages

<p><strong>More resource-saving.</strong></p>

More resource-saving.

The plastic used consists of 100 % recycled material.
<p><strong>Better fit.</strong></p>

Better fit.

Protection for High Voltage Connector Systems using our registered design.
<p><strong>Saves time.</strong></p>

Saves time.

Quick disassembly thanks to non-slip grip surfaces.
<p><strong>Seals better.</strong></p>

Seals better.

Protection against splashing water from any direction (IPX4) depending on the specific connector design and quality.
<p><strong>Cleaner.</strong></p>

Cleaner.

Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
