Covers - GPN 340

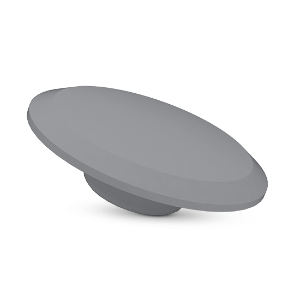

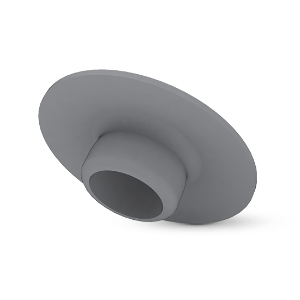

The GPN 340 covers are suitable for the protection of countersunk hexagonal socket screws according to DIN EN ISO 4762 and locking screws as per DIN 908 against dirt and damage.
- Covers for internal protection
- Sustainable variant made from post-consumer recyclate available
Recycling blend
Dimensions
|
Applicable for screws
|
Dimensions
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Item
|
Thread type
|
Hexagon socket SW
|
A
|
C
|
H
|
M
|
CAD
|
Order no.
|
|
| GPN 340 SW 2,5 PCR-PE / PE-LD, grey | M 3 | 2,5 | 10 | 2,8 | 2,2 | 4 | show | 34000250073 | |
|
|
|||||||||
| GPN 340 SW 3 PCR-PE / PE-LD, grey | M 4 | 3 | 12 | 3,3 | 2,3 | 4,3 | show | 34000300073 | |
|
|
|||||||||
| GPN 340 SW 4 PCR-PE / PE-LD, grey | M 5 | 4 | 14 | 4,4 | 2,9 | 4,9 | show | 34000400073 | |
|
|
|||||||||
| GPN 340 SW 5 PCR-PE / PE-LD, grey | M 6 | 5 | 15 | 5,4 | 3,3 | 5,3 | show | 34000500073 | |
|
|
|||||||||
| GPN 340 SW 6 PCR-PE / PE-LD, grey | M 8 | 6 | 19 | 6,3 | 4 | 6,1 | show | 34000600073 | |
|
|
|||||||||
| GPN 340 SW 8 PCR-PE / PE-LD, grey | M 10 | 8 | 22 | 8,5 | 4,5 | 7 | show | 34000800073 | |
|
|
|||||||||
| GPN 340 SW 10 PCR-PE / PE-LD, grey | M 12 | 10 | 24 | 10,5 | 5 | 7,3 | show | 34001000073 | |
|
|
|||||||||
| GPN 340 SW 14 PCR-PE / PE-LD, grey | M 16 | 14 | 30 | 14,5 | 7,1 | 9,7 | show | 34001400073 | |
|
|
|||||||||
| GPN 340 SW 17 PCR-PE / PE-LD, grey | M 20 | 17 | 36,5 | 17,5 | 9 | 11,6 | show | 34001700073 | |
|
|
|||||||||
Dimensions in mm.
Information on materials, colours, designs and use of our products can be found on the website and in chapter 3´ Materials and application´.
Quality advantages
Better fit.
Suitable for countersunk hexagonal socket head screws in accordance with DIN EN ISO 4762 and locking screws conforming to DIN 908.
More resource-saving.
Blend of post-consumer recyclate and virgin material
