Closure Plugs - GPN 300 F

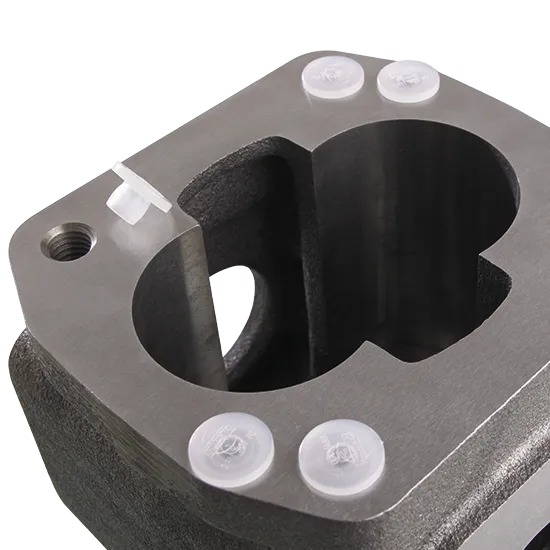

The GPN 300 F sealing plugs can be used to protect internal threads and bore holes, and ensure a firm fit thanks to their crowned shank. The flat head saves space.


  • Sealing plugs for internal protection
  • Production in accordance with ISO 16232 in a specially designed cleanroom possible
  • Two sustainable variants made from post-consumer recyclate available
more advantages

Dimensions

Colour
recycling blue
Material
PCR-PE
Dimensions
Page
Item
A
C
H
M
CAD
Order no.
GPN 300 F 1 PCR-PE, recycling blue 5 3,1 2 3 3000001RB61
GPN 300 F 2 PCR-PE, recycling blue 14 7,2 6 8 3000002RB61
GPN 300 F 3 PCR-PE, recycling blue 14 8,4 6 8 3000003RB61
GPN 300 F 4 PCR-PE, recycling blue 14 9,2 4,5 6,5 3000004RB61
GPN 300 F 5 PCR-PE, recycling blue 14 10,7 5,5 7,5 3000005RB61
GPN 300 F 7 PCR-PE, recycling blue 16 11,7 7 9 3000007RB61
GPN 300 F 9 PCR-PE, recycling blue 16 12,3 7 9 3000009RB61
GPN 300 F 10 PCR-PE, recycling blue 20 13,7 8 10 3000010RB61
GPN 300 F 011 PCR-PE, recycling blue 7 4,7 1,8 2,6 3000110RB61
GPN 300 F 11 PCR-PE, recycling blue 20 14,6 5,5 7,5 3000011RB61
GPN 300 F 012 PCR-PE, recycling blue 9 6,6 4 5,2 3000120RB61
GPN 300 F 12 PCR-PE, recycling blue 20 15,6 8 10 3000012RB61
GPN 300 F 14 PCR-PE, recycling blue 22 16,7 5,5 7,5 3000014RB61
GPN 300 F 15 PCR-PE, recycling blue 22 17,1 8 10,5 3000015RB61
GPN 300 F 17 PCR-PE, recycling blue 25 18,4 8 10,8 3000017RB61
GPN 300 F 18 PCR-PE, recycling blue 25 19,3 8 10,8 3000018RB61
GPN 300 F 19 PCR-PE, recycling blue 25 20,7 8 10,5 3000019RB61
GPN 300 F 21 PCR-PE, recycling blue 28 22,4 9 12 3000021RB61
GPN 300 F 22 PCR-PE, recycling blue 28 24 9 12 3000022RB61
GPN 300 F 23 PCR-PE, recycling blue 28 24,6 9 12 3000023RB61
GPN 300 F 24 PCR-PE, recycling blue 36 29 11,7 14,7 3000024RB61
GPN 300 F 25 PCR-PE, recycling blue 36 32 10 12,5 3000025RB61
GPN 300 F 26 PCR-PE, recycling blue 36 33,5 12 14 3000026RB61
GPN 300 F 27 PCR-PE, recycling blue 42 34,8 15 18 3000027RB61
GPN 300 F 28 PCR-PE, recycling blue 42 36,5 15 18 3000028RB61
GPN 300 F 30 PCR-PE, recycling blue 42 38,4 10 12,5 3000030RB61
GPN 300 F 031 PCR-PE, recycling blue 14 8,6 4,5 6,5 3000310RB61
GPN 300 F 31 PCR-PE, recycling blue 42 40 15 18 3000031RB61
GPN 300 F 032 PCR-PE, recycling blue 13 8,8 7,5 9,5 3000320RB61
GPN 300 F 32 PCR-PE, recycling blue 55 46 18 21 3000032RB61
GPN 300 F 33 PCR-PE, recycling blue 55 48,5 12 15 3000033RB61
GPN 300 F 35 PCR-PE, recycling blue 55 51,5 18 21 3000035RB61
GPN 300 F 37 PCR-PE, recycling blue 63 55 18 21 3000037RB61
GPN 300 F 38 PCR-PE, recycling blue 63 55,8 18 21 3000038RB61
GPN 300 F 40 PCR-PE, recycling blue 63 58 18 21 3000040RB61
GPN 300 F 041 PCR-PE, recycling blue 14 9,4 4,5 6,5 3000041RB61
GPN 300 F 41 PCR-PE, recycling blue 78 71 18 22 3000410RB61
GPN 300 F 042 PCR-PE, recycling blue 13 10,3 5,5 7,5 3000420RB61
GPN 300 F 42 PCR-PE, recycling blue 95 86 18 19,3 3000042RB61
GPN 300 F 44 PCR-PE, recycling blue 124 102,5 18 21,5 3000044RB61
GPN 300 F 47 PCR-PE, recycling blue 152 123,5 18 21,5 3000047RB61
GPN 300 F 091 PCR-PE, recycling blue 16 13 7 9 3000091RB61
GPN 300 F 111 PCR-PE, recycling blue 20 15 8 10 3000111RB61
GPN 300 F 112 PCR-PE, recycling blue 20 15 5,5 7,5 3000112RB61
GPN 300 F 141 PCR-PE, recycling blue 22 16,5 5,5 7,5 3000141RB61
GPN 300 F 142 PCR-PE, recycling blue 20 16,5 5,5 7,5 3000142RB61
GPN 300 F 181 PCR-PE, recycling blue 25 21,4 7,5 9,5 3000181RB61
GPN 300 F 182 PCR-PE, recycling blue 25 21,7 8 10,5 3000182RB61
GPN 300 F 183 PCR-PE, recycling blue 25 19,6 8 10,5 3000183RB61
GPN 300 F 184 PCR-PE, recycling blue 25 21,2 8 10 3000184RB61
GPN 300 F 211 PCR-PE, recycling blue 28 23,6 9 12 3000211RB61
GPN 300 F 231 PCR-PE, recycling blue 27 24,5 8,5 11 3000231RB61
GPN 300 F 232 PCR-PE, recycling blue 28 25,5 7,5 9,5 3000232RB61
GPN 300 F 233 PCR-PE, recycling blue 28 26,5 9 12 3000233RB61
GPN 300 F 241 PCR-PE, recycling blue 36 30,5 12 15 3000241RB61
GPN 300 F 242 PCR-PE, recycling blue 36 31 12 15 3000242RB61
GPN 300 F 271 PCR-PE, recycling blue 42 35,5 15 18 3000271RB61
GPN 300 F 301 PCR-PE, recycling blue 42 39 15 18 3000301RB61
GPN 300 F 311 PCR-PE, recycling blue 45 40,7 15 18 3000311RB61
GPN 300 F 312 PCR-PE, recycling blue 48 42,3 15 18 3000312RB61
GPN 300 F 0315 PCR-PE, recycling blue 18 8,6 6 8 3000315RB61
GPN 300 F 401 PCR-PE, recycling blue 71 66 18 21,5 3000401RB61
GPN 300 F 402 PCR-PE, recycling blue 63 59 18 21,3 3000402RB61
GPN 300 F 411 PCR-PE, recycling blue 86 75,8 19 22 3000411RB61

Dimensions in mm

Information on materials, colours, drawings and use of our articles can be found on pages 166/167.

Application guide

for metric threads
Item
fine thread
Standard thread
Pipe thread
GPN 300 F 1 PCR-PE, recycling blue M 3,5
GPN 300 F 2 PCR-PE, recycling blue M 8 x 1 M 8 1/16
GPN 300 F 3 PCR-PE, recycling blue M 9 x 1
GPN 300 F 4 PCR-PE, recycling blue M 10 x 1 1/8
GPN 300 F 5 PCR-PE, recycling blue M 12 x 1,5 M 12
GPN 300 F 7 PCR-PE, recycling blue M 12 x 1 M 13 x 1,5 1/4
GPN 300 F 9 PCR-PE, recycling blue M 13 x 1 M 14 1/4
GPN 300 F 10 PCR-PE, recycling blue M 15 x 1,5
GPN 300 F 011 PCR-PE, recycling blue M 5 x 0,5
GPN 300 F 11 PCR-PE, recycling blue M 15 x 1 M 16
GPN 300 F 012 PCR-PE, recycling blue M 7,5 x 1
GPN 300 F 12 PCR-PE, recycling blue M 16 x 1 M 18 3/8
GPN 300 F 14 PCR-PE, recycling blue M 18 x 1,5
GPN 300 F 15 PCR-PE, recycling blue M 18 x 1,5
GPN 300 F 17 PCR-PE, recycling blue M 19 x 1 M 20 x 2
GPN 300 F 18 PCR-PE, recycling blue M 20 x 1 M 21 x 2 1/2
GPN 300 F 19 PCR-PE, recycling blue M 22 x 1,5
GPN 300 F 21 PCR-PE, recycling blue M 23 x 1 M 24 x 2
GPN 300 F 22 PCR-PE, recycling blue M 25 x 1,5 M 27
GPN 300 F 23 PCR-PE, recycling blue M 25 x 1 M 26 x 1,5 M 26 x 2 3/4
GPN 300 F 24 PCR-PE, recycling blue M 30 x 1,5
GPN 300 F 25 PCR-PE, recycling blue M 33 x 1,5 M 36
GPN 300 F 26 PCR-PE, recycling blue M 34 x 1 M 35 x 2 M 36 x 3
GPN 300 F 27 PCR-PE, recycling blue M 36 x 1,5
GPN 300 F 28 PCR-PE, recycling blue M 37 x 1 M 38 x 2 M 39 x 3
GPN 300 F 30 PCR-PE, recycling blue M 39 x 1 M 40 x 2
GPN 300 F 031 PCR-PE, recycling blue M 10
GPN 300 F 31 PCR-PE, recycling blue
GPN 300 F 032 PCR-PE, recycling blue M 9,5 x 1 M 10 1/8
GPN 300 F 32 PCR-PE, recycling blue M 50 x 4
GPN 300 F 33 PCR-PE, recycling blue M 50 x 2
GPN 300 F 35 PCR-PE, recycling blue M 52 x 1 1 3/4
GPN 300 F 37 PCR-PE, recycling blue M 56 x 1,5
GPN 300 F 38 PCR-PE, recycling blue M 56 x 1
GPN 300 F 40 PCR-PE, recycling blue M 62 x 4 M 64
GPN 300 F 041 PCR-PE, recycling blue M 10 x 1
GPN 300 F 41 PCR-PE, recycling blue M 72 x 1,5 M 75 x 4
GPN 300 F 042 PCR-PE, recycling blue M 11 x 1 M 12
GPN 300 F 42 PCR-PE, recycling blue M 90 x 4
GPN 300 F 44 PCR-PE, recycling blue M 105 x 3
GPN 300 F 47 PCR-PE, recycling blue M 125 x 2
GPN 300 F 091 PCR-PE, recycling blue M 13,5 x 1 M 14 x 1,5
GPN 300 F 111 PCR-PE, recycling blue M 16 x 1,5
GPN 300 F 112 PCR-PE, recycling blue M 16 x 1,5
GPN 300 F 141 PCR-PE, recycling blue M 17 x 1 M 18 x 1,5
GPN 300 F 142 PCR-PE, recycling blue M 17 x 1 M 18 x 1,5
GPN 300 F 181 PCR-PE, recycling blue M 22 x 1 M 23 x 2 M 24
GPN 300 F 182 PCR-PE, recycling blue M 22 x 1
GPN 300 F 183 PCR-PE, recycling blue M 21 x 1,5 M 22
GPN 300 F 184 PCR-PE, recycling blue M 22 x 1 M 24 5/8
GPN 300 F 211 PCR-PE, recycling blue M 24 x 1 M 25 x 1,5 M 25 x 2
GPN 300 F 231 PCR-PE, recycling blue M 25 x 1 M 26 x 2 M 25
GPN 300 F 232 PCR-PE, recycling blue M 26 x 1 M 27 x 2
GPN 300 F 233 PCR-PE, recycling blue M 27 x 1 M 28 x 2 M 30
GPN 300 F 241 PCR-PE, recycling blue M 31 x 1 M 32 x 2 1
GPN 300 F 242 PCR-PE, recycling blue M 32 x 1,5 1
GPN 300 F 271 PCR-PE, recycling blue M 36 x 1 M 37 x 2 M 38 x 3 M 39 1 1/8
GPN 300 F 301 PCR-PE, recycling blue M 40 x 1,5 M 42 x 3
GPN 300 F 311 PCR-PE, recycling blue M 42 x 1,5 M 42 x 2 M 45
GPN 300 F 312 PCR-PE, recycling blue M 45 x 3
GPN 300 F 0315 PCR-PE, recycling blue M 10
GPN 300 F 401 PCR-PE, recycling blue M 70 x 4
GPN 300 F 402 PCR-PE, recycling blue M 60 x 1,5
GPN 300 F 411 PCR-PE, recycling blue
