3 Pol - 1184556
1184556

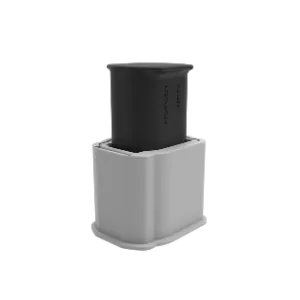

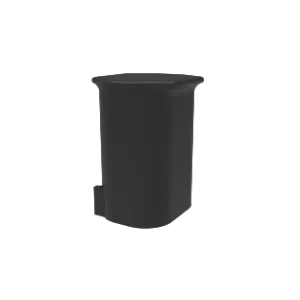

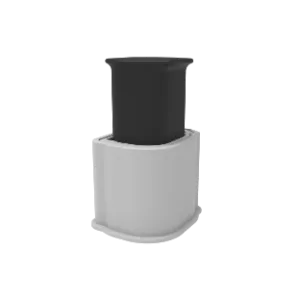

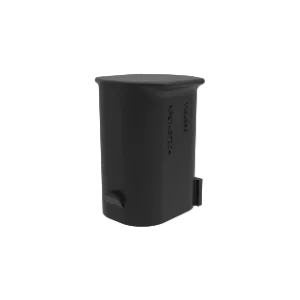

- Delete cap matching to Tyco MQS female connectors
- Long-term protection of the female connector pins against failure
- Secure installation in the connector housing thanks to lateral latching elements
- Water resistance according to IPX9k
- The cap is independent of connector coding
suitable for:
Tyco MQS
Version
3 Pol
Request individual advice
Technical characteristics
Technical data sheet
Colour
black
Material
PBT GF20
Temperature resistance
-40°C up to +130°C
Chemical resistance
Alcohol, weak alkalis, solvents, fuels, mineral oils, grease/oils
Tightness
PG23
Order number
1184556
Shipping time
On Demand
Advantages
Staub und Schmutz
Staub und Schmutz
Due to the wide variety of outlet directions and ability to maximize space with low profile solutions, our dress covers allow cables to easily route in their defined direction. For optimal use of the installation space.
Bauraum
Bauraum
Due to the wide variety of outlet directions and ability to maximize space with low profile solutions, our dress covers allow cables to easily route in their defined direction. For optimal use of the installation space.
Intuitive Montage
Schutz der Leitungen
Reduzierung von Schwingungen
Einsatz auf engstem Raum (Form D und E)
