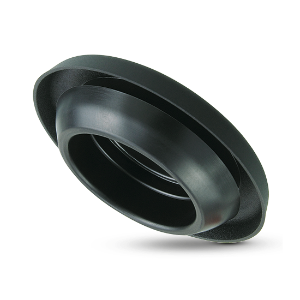

Product image, Product image, Website

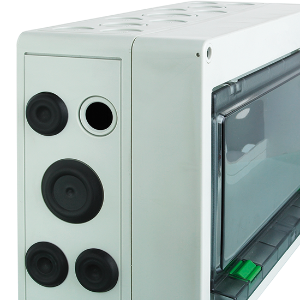

Application Sealing plug - GPN 915

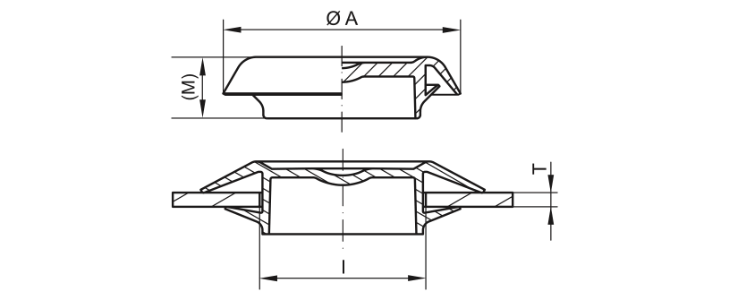

Drawing sealing plug - GPN 915
Sealing Plugs - GPN 915
The GPN 915 sealing plugs protect housing apertures from dirt and damage, can be used for various wall thicknesses and aperture diameters and have a very flat, space-saving design. Sealing lips prevent the ingress of liquids within certain limits. The material is temporarily heat-resistant up to 180°C.
- Sealing plugs for internal protection
- Temporarily heat-resistant up to 180°C
Virgin material
Dimensions
|
|
Applicable for housings
|
|
|||||||
|---|---|---|---|---|---|---|---|---|---|
|
Item
|
I min
|
I max
|
T min
|
T max
|
A
|
M
|
CAD
|
Order no.
|
|
| GPN 915 / 12 PHT / TPC-ET, black | 0.019 | 0.02 | 0.001 | 0.005 | 0.819 | 0.354 | show | 91500120000 | |
|
|
|||||||||
| GPN 915 / 15 PHT / TPC-ET, black | 0.023 | 0.026 | 0.001 | 0.005 | 0.937 | 0.35 | show | 91500150000 | |
|
|
|||||||||
| GPN 915 / 20 PHT / TPC-ET, black | 0.03 | 0.033 | 0.001 | 0.005 | 1.098 | 0.346 | show | 91500200000 | |
|
|
|||||||||
| GPN 915 / 25 PHT / TPC-ET, black | 0.039 | 0.042 | 0.001 | 0.005 | 1.339 | 0.339 | show | 91500250000 | |
|
|
|||||||||
| GPN 915 / 30 PHT / TPC-ET, black | 0.046 | 0.048 | 0.001 | 0.005 | 1.535 | 0.35 | show | 91500300000 | |
|
|
|||||||||
| GPN 915 / 35 PHT / TPC-ET, black | 0.053 | 0.057 | 0.001 | 0.005 | 1.89 | 0.433 | show | 91500350000 | |
|
|
|||||||||
| GPN 915 / 50 PHT / TPC-ET, black | 0.078 | 0.081 | 0.001 | 0.005 | 2.323 | 0.346 | show | 91500500000 | |
|
|
|||||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Quality advantages
Temperaturbeständiger.
Heat resistant to 180 °C.
Abdichtender.
Provides limited sealing action against ingress or outflow.
Vielseitiger.
Suitable for various wall thicknesses and diameters.
Besser.
Ideal for closing off apertures in cover panels.
