Product image grip cap - GPN 215, EVA
Application grip cap - GPN 215

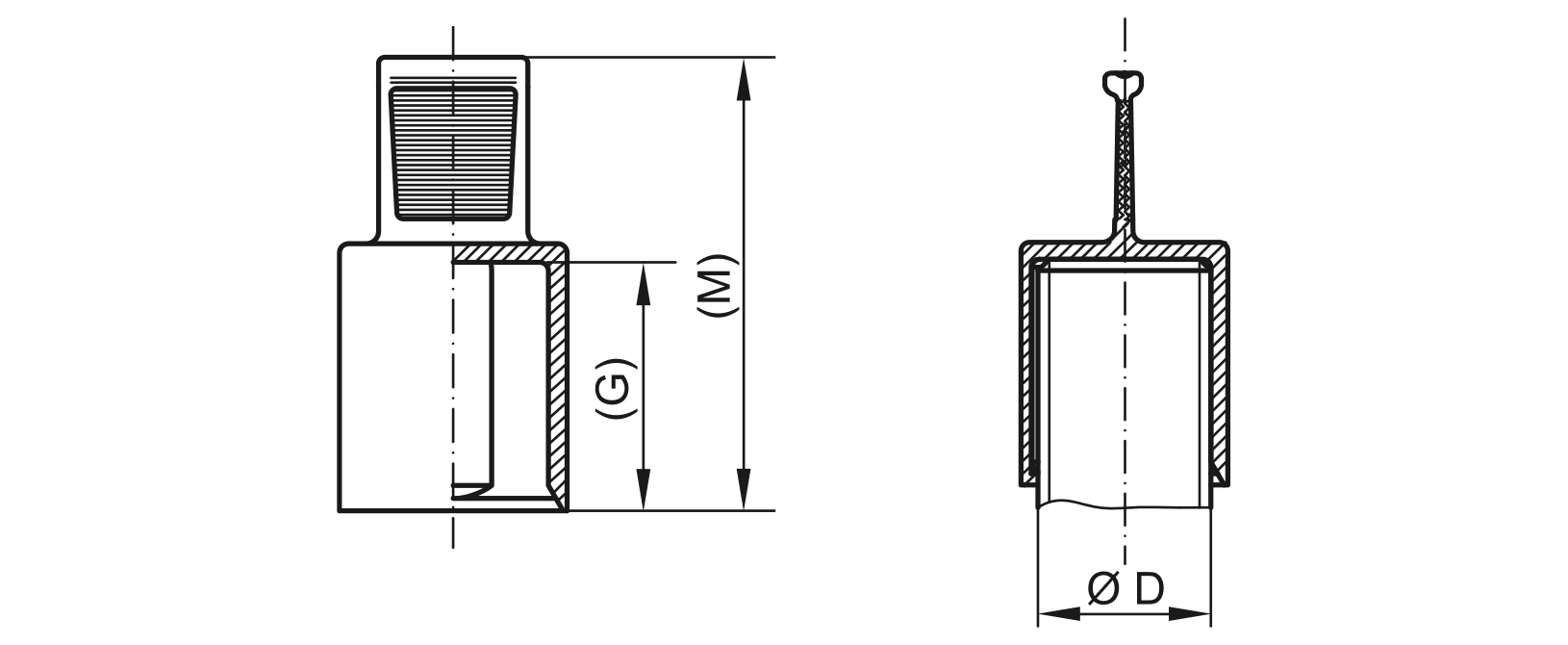

Drawing Grip cap - GPN 215
Grip Caps - GPN 215
The GPN 215 grip caps are suitable for external threads, bolts and pins. The ergonomically shaped grip tab enables easy handling during fitting and removal.
Interior surfaces accommodate large tolerances, ensuring an optimal clamping fit.- Grip caps for external protection
- Production in accordance with ISO 16232 in a specially designed cleanroom possible
Virgin material
Dimensions
|
Applicable for
|
Dimensions
|
|||||
|---|---|---|---|---|---|---|
|
Item
|
D
|
G
|
M
|
CAD
|
Order no.
|
|
| GPN 215 ML 8 x 20 EVA, black | 0.315 | 0.787 | 1.437 | show | 21508200000 | |
|
|
||||||
| GPN 215 ML 10 x 20 EVA, black | 0.394 | 0.787 | 1.437 | show | 21510200000 | |
|
|
||||||
| GPN 215 ML 12 x 20 EVA, black | 0.472 | 0.787 | 1.437 | show | 21512200000 | |
|
|
||||||
| GPN 215 ML 14 x 20 EVA, black | 0.551 | 0.787 | 1.437 | show | 21514200000 | |
|
|
||||||
| GPN 215 ML 16 x 20 EVA, black | 0.63 | 0.787 | 1.437 | show | 21516200000 | |
|
|
||||||
| GPN 215 ML 17 x 20 EVA, black | 0.669 | 0.787 | 1.437 | show | 21517200000 | |
|
|
||||||
| GPN 215 ML 18 x 20 EVA, black | 0.709 | 0.787 | 1.437 | show | 21518200000 | |
|
|
||||||
| GPN 215 ML 19 x 20 EVA, black | 0.748 | 0.787 | 1.437 | show | 21519200000 | |
|
|
||||||
| GPN 215 ML 20 x 20 EVA, black | 0.787 | 0.787 | 1.437 | show | 21520200000 | |
|
|
||||||
| GPN 215 ML 22 x 20 EVA, black | 0.866 | 0.787 | 1.437 | show | 21522200000 | |
|
|
||||||
| GPN 215 ML 24 x 20 EVA, black | 0.945 | 0.787 | 1.437 | show | 21530200000 | |
|
|
||||||
| GPN 215 ML 26 x 20 EVA, black | 1.024 | 0.787 | 1.437 | show | 21526200000 | |
|
|
||||||
| GPN 215 ML 28 x 20 EVA, black | 1.102 | 0.787 | 1.437 | show | 21528200000 | |
|
|
||||||
| GPN 215 ML 30 x 20 EVA, black | 1.102 | 0.787 | 1.437 | show | 21530200000 | |
|
|
||||||
Dimensions in mm
Information on materials, colours, drawings and use of our articles can be found on pages 166/167.
Application guide
mm
inch
|
Applicable for metric thread
|
||||||
|---|---|---|---|---|---|---|
|
Item
|
fine thread
|
Standard thread
|
||||
| GPN 215 ML 8 x 20 EVA, black | M 8 x 1 | M 8 | ||||
| GPN 215 ML 10 x 20 EVA, black | M 10 x 1 | M 10 x 1,25 | M 10 | |||
| GPN 215 ML 12 x 20 EVA, black | M 12 x 1 | M 12 x 1,25 | M 12 x 1,5 | M 12 | ||
| GPN 215 ML 14 x 20 EVA, black | M 14 x 1 | M 14 x 1,5 | M 14 | |||
| GPN 215 ML 16 x 20 EVA, black | M 16 x 1 | M 16 x 1,5 | M 16 | |||
| GPN 215 ML 17 x 20 EVA, black | M 17 x 1 | M 17 x 1,5 | M 17 | |||
| GPN 215 ML 18 x 20 EVA, black | M 18 x 1 | M 18 x 1,5 | M 18 | |||
| GPN 215 ML 19 x 20 EVA, black | M 19 x 1 | M 19 x 1,5 | M 19 | |||
| GPN 215 ML 20 x 20 EVA, black | M 20 x 1 | M 20 x 1,5 | M 20 | |||
| GPN 215 ML 22 x 20 EVA, black | M 22 x 1 | M 22 x 1,5 | M 22 x 2 | M 22 | ||
| GPN 215 ML 24 x 20 EVA, black | M 24 x 1 | M 24 x 1,5 | M 24 x 2 | M 24 | ||
| GPN 215 ML 26 x 20 EVA, black | M 26 x 1 | M 26 x 1,5 | M 26 x 2 | M 26 | ||
| GPN 215 ML 28 x 20 EVA, black | M 28 x 1 | M 28 x 1,5 | M 28 x 2 | M 28 | ||
| GPN 215 ML 30 x 20 EVA, black | M 28 x 1 | M 28 x 1,5 | M 28 x 2 | M 28 | ||
This application table represents guideline values. We would be pleased to send you free samples.
Quality advantages
Saves time.
With ergonomically designed removal tab for easy handling.
More versatile.
Interior surfaces accomodate major tolerances, ensuring a tight fit.
Cleaner.
Production in accordance with VDA Band 19 and ISO 16232 in our specially equipped cleanroom on request.
Better.
Suitable for outside threads and studs.
Downloads
Alternative standard series
