Verschlussstopfen – GPN 300 V

Die Verschlussstopfen GPN 300 V sind einsetzbar für den Schutz von Innengewinden und Bohrungen und haben durch den balligen Schaft einen festen Sitz. Der flache Kopf und der abgestimmte Kopfdurchmesser erlauben eine Versenkung in der Bohrung.


  • Verschlussstopfen für den Innenschutz
  • Produktion nach ISO 16232 im speziell eingerichteten Sauberraum möglich
  • Zwei nachhaltige Varianten aus Post-Consumer-Rezyklat verfügbar
mehr Vorteile

Abmessungen

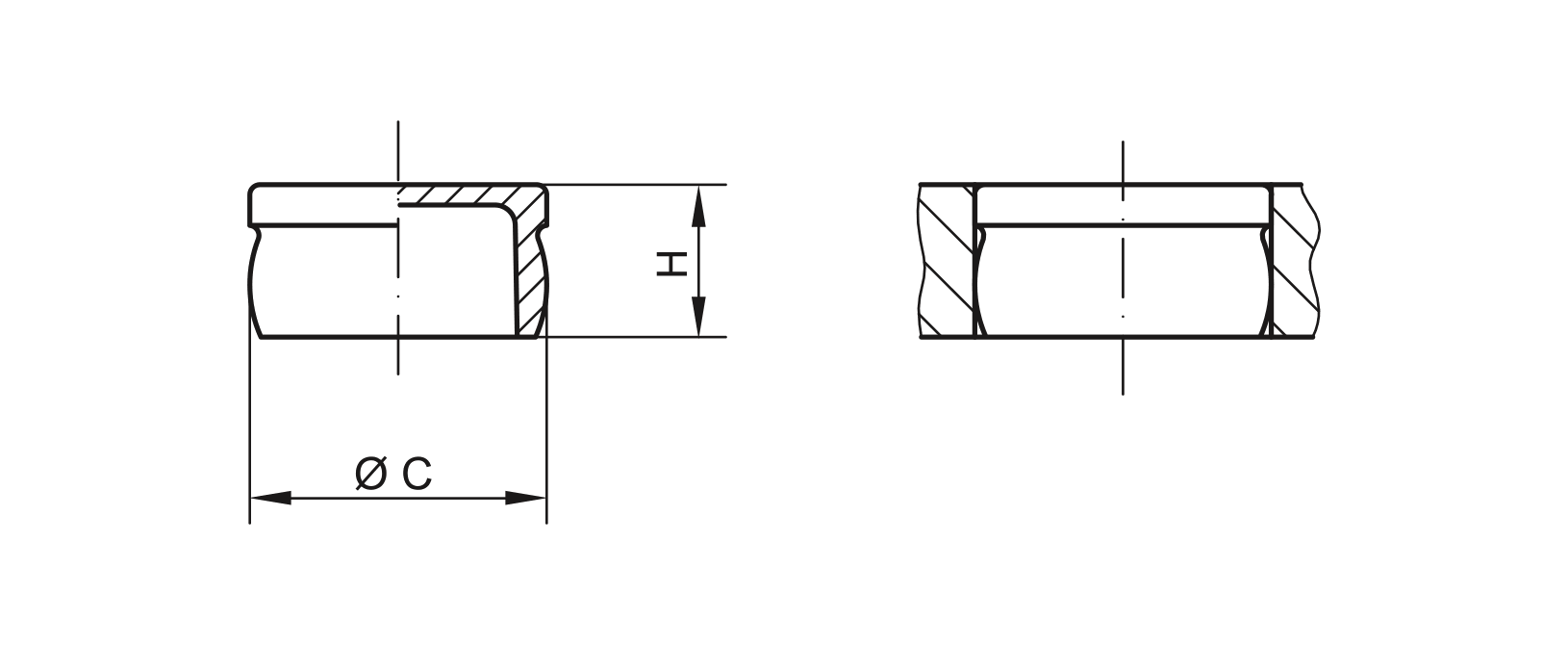

Zeichnung, CAD für Website
Standardfarben
recycling blau
Material
PCR-PE
Hier Preise und Konditionen direkt online einsehen und noch einfacher bestellen.

Maße.

Bestell-Nr.
Artikel
C
H
CAD
Bestell-Nr.
GPN 300 V 2 PCR-PE, recycling blau 7,2 8 3010002RB61
GPN 300 V 3 PCR-PE, recycling blau 8,4 8 3010003RB61
GPN 300 V 4 PCR-PE, recycling blau 9,2 6,5 3010004RB61
GPN 300 V 5 PCR-PE, recycling blau 10,7 7,5 3010005RB61
GPN 300 V 7 PCR-PE, recycling blau 11,7 9 3010007RB61
GPN 300 V 9 PCR-PE, recycling blau 12,3 9 3010009RB61
GPN 300 V 10 PCR-PE, recycling blau 13,7 10 3010010RB61
GPN 300 V 011 PCR-PE, recycling blau 6,2 8 3010110RB61
GPN 300 V 11 PCR-PE, recycling blau 14,6 7,5 3010011RB61
GPN 300 V 12 PCR-PE, recycling blau 15,6 10 3010012RB61
GPN 300 V 14 PCR-PE, recycling blau 16,7 7,5 3010014RB61
GPN 300 V 15 PCR-PE, recycling blau 17,1 10,5 3010015RB61
GPN 300 V 17 PCR-PE, recycling blau 18,4 10,8 3010017RB61
GPN 300 V 18 PCR-PE, recycling blau 19,3 10,8 3010018RB61
GPN 300 V 19 PCR-PE, recycling blau 20,7 10,5 3010019RB61
GPN 300 V 21 PCR-PE, recycling blau 22,4 11,5 3010021RB61
GPN 300 V 22 PCR-PE, recycling blau 24 12 3010022RB61
GPN 300 V 23 PCR-PE, recycling blau 24,6 12 3010023RB61
GPN 300 V 24 PCR-PE, recycling blau 29 15 3010024RB61
GPN 300 V 25 PCR-PE, recycling blau 32 12,5 3010025RB61
GPN 300 V 26 PCR-PE, recycling blau 33,5 15 3010026RB61
GPN 300 V 27 PCR-PE, recycling blau 34,8 18 3010027RB61
GPN 300 V 28 PCR-PE, recycling blau 36,5 18 3010028RB61
GPN 300 V 30 PCR-PE, recycling blau 38,4 12,5 3010030RB61
GPN 300 V 031 PCR-PE, recycling blau 8,6 6,5 3010310RB61
GPN 300 V 31 PCR-PE, recycling blau 40 18 3010031RB61
GPN 300 V 32 PCR-PE, recycling blau 46 21 3010032RB61
GPN 300 V 33 PCR-PE, recycling blau 48,5 15 3010033RB61
GPN 300 V 35 PCR-PE, recycling blau 51,5 21 3010035RB61
GPN 300 V 37 PCR-PE, recycling blau 55 21 3010037RB61
GPN 300 V 38 PCR-PE, recycling blau 55,8 21 3010038RB61
GPN 300 V 40 PCR-PE, recycling blau 58 21 3010040RB61
GPN 300 V 041 PCR-PE, recycling blau 9,4 6,5 3010041RB61
GPN 300 V 41 PCR-PE, recycling blau 71 22 3010410RB61
GPN 300 V 091 PCR-PE, recycling blau 13 9 3010091RB61
GPN 300 V 111 PCR-PE, recycling blau 15 10 3010111RB61
GPN 300 V 112 PCR-PE, recycling blau 15 7,5 3010112RB61
GPN 300 V 142 PCR-PE, recycling blau 16,5 7,5 3010142RB61
GPN 300 V 181 PCR-PE, recycling blau 21,4 9,5 3010181RB61
GPN 300 V 182 PCR-PE, recycling blau 21,7 10,5 3010182RB61
GPN 300 V 183 PCR-PE, recycling blau 19,6 10,5 3010183RB61
GPN 300 V 184 PCR-PE, recycling blau 21,2 10 3010184RB61
GPN 300 V 211 PCR-PE, recycling blau 23,6 12 3010211RB61
GPN 300 V 231 PCR-PE, recycling blau 24,5 11 3010231RB61
GPN 300 V 232 PCR-PE, recycling blau 25,5 9,5 3010232RB61
GPN 300 V 233 PCR-PE, recycling blau 26,5 12 3010233RB61
GPN 300 V 241 PCR-PE, recycling blau 30,5 15 3010241RB61
GPN 300 V 271 PCR-PE, recycling blau 35,5 18 3010271RB61
GPN 300 V 301 PCR-PE, recycling blau 39 18 3010301RB61
GPN 300 V 311 PCR-PE, recycling blau 40,7 18 3010311RB61
GPN 300 V 312 PCR-PE, recycling blau 42,3 18 3010312RB61
GPN 300 V 401 PCR-PE, recycling blau 66 21,5 3010401RB61

Maße in mm.

Informationen zu Werkstoffen, Farben, Zeichnungen und Verwendung unserer Artikel finden Sie auf der Website und auf den Katalogseiten 166/167.

Richtwerte für die Anwendung

Metrisches Gewinde
Artikel
Feingewinde
Regelgewinde
Rohrgewinde
GPN 300 V 2 PCR-PE, recycling blau M 8 x 1 M 8 1/16
GPN 300 V 3 PCR-PE, recycling blau M 9 x 1
GPN 300 V 4 PCR-PE, recycling blau M 10 x 1 1/8
GPN 300 V 5 PCR-PE, recycling blau M 12 x 1,5 M 12
GPN 300 V 7 PCR-PE, recycling blau M 12 x 1 M 13 x 1,5 1/4
GPN 300 V 9 PCR-PE, recycling blau M 13 x 1 M 14 1/4
GPN 300 V 10 PCR-PE, recycling blau M 15 x 1,5
GPN 300 V 011 PCR-PE, recycling blau M 7
GPN 300 V 11 PCR-PE, recycling blau M 15 x 1 M 16
GPN 300 V 12 PCR-PE, recycling blau M 16 x 1 M 18 3/8
GPN 300 V 14 PCR-PE, recycling blau M 18 x 1,5
GPN 300 V 15 PCR-PE, recycling blau M 18 x 1,5
GPN 300 V 17 PCR-PE, recycling blau M 19 x 1 M 20 x 2
GPN 300 V 18 PCR-PE, recycling blau M 20 x 1 M 21 x 2 1/2
GPN 300 V 19 PCR-PE, recycling blau M 22 x 1,5
GPN 300 V 21 PCR-PE, recycling blau M 23 x 1 M 24 x 2
GPN 300 V 22 PCR-PE, recycling blau M 25 x 1,5 M 27
GPN 300 V 23 PCR-PE, recycling blau M 25 x 1 M 26 x 1,5 M 26 x 2 3/4
GPN 300 V 24 PCR-PE, recycling blau M 30 x 1,5
GPN 300 V 25 PCR-PE, recycling blau M 33 x 1,5 M 36
GPN 300 V 26 PCR-PE, recycling blau M 34 x 1 M 35 x 2 M 36 x 3
GPN 300 V 27 PCR-PE, recycling blau M 36 x 1,5
GPN 300 V 28 PCR-PE, recycling blau M 37 x 1 M 38 x 2 M 39 x 3
GPN 300 V 30 PCR-PE, recycling blau M 39 x 1 M 40 x 2
GPN 300 V 031 PCR-PE, recycling blau M 10
GPN 300 V 31 PCR-PE, recycling blau
GPN 300 V 32 PCR-PE, recycling blau
GPN 300 V 33 PCR-PE, recycling blau M 50 x 2
GPN 300 V 35 PCR-PE, recycling blau M 52 x 1 1 3/4
GPN 300 V 37 PCR-PE, recycling blau M 56 x 1,5
GPN 300 V 38 PCR-PE, recycling blau M 56 x 1
GPN 300 V 40 PCR-PE, recycling blau M 62 x 4 M 64
GPN 300 V 041 PCR-PE, recycling blau M 10 x 1
GPN 300 V 41 PCR-PE, recycling blau M 72 x 1,5 M 75 x 4
GPN 300 V 091 PCR-PE, recycling blau M 13,5 x 1 M 14 x 1,5
GPN 300 V 111 PCR-PE, recycling blau M 16 x 1,5
GPN 300 V 112 PCR-PE, recycling blau M 16 x 1,5
GPN 300 V 142 PCR-PE, recycling blau M 17 x 1 M 18 x 1,5
GPN 300 V 181 PCR-PE, recycling blau M 22 x 1 M 23 x 2 M 24
GPN 300 V 182 PCR-PE, recycling blau M 22 x 1
GPN 300 V 183 PCR-PE, recycling blau M 21 x 1,5 M 22
GPN 300 V 184 PCR-PE, recycling blau M 22 x 1 M 24 5/8
GPN 300 V 211 PCR-PE, recycling blau M 24 x 1 M 25 x 1,5 M 25 x 2
GPN 300 V 231 PCR-PE, recycling blau
GPN 300 V 232 PCR-PE, recycling blau M 26 x 1 M 27 x 2
GPN 300 V 233 PCR-PE, recycling blau M 27 x 1 M 28 x 2 M 30
GPN 300 V 241 PCR-PE, recycling blau M 31 x 1 M 32 x 2 1
GPN 300 V 271 PCR-PE, recycling blau M 36 x 1 M 37 x 2 M 38 x 3 M 39 1 1/8
GPN 300 V 301 PCR-PE, recycling blau M 40 x 1,5 M 42 x 3
GPN 300 V 311 PCR-PE, recycling blau M 42 x 1,5 M 42 x 2 M 45
GPN 300 V 312 PCR-PE, recycling blau M 45 x 3
GPN 300 V 401 PCR-PE, recycling blau M 70 x 4

Diese Anwendungstabelle stellt Richtwerte dar. Gern senden wir Ihnen kostenlose Erprobungsmuster.
